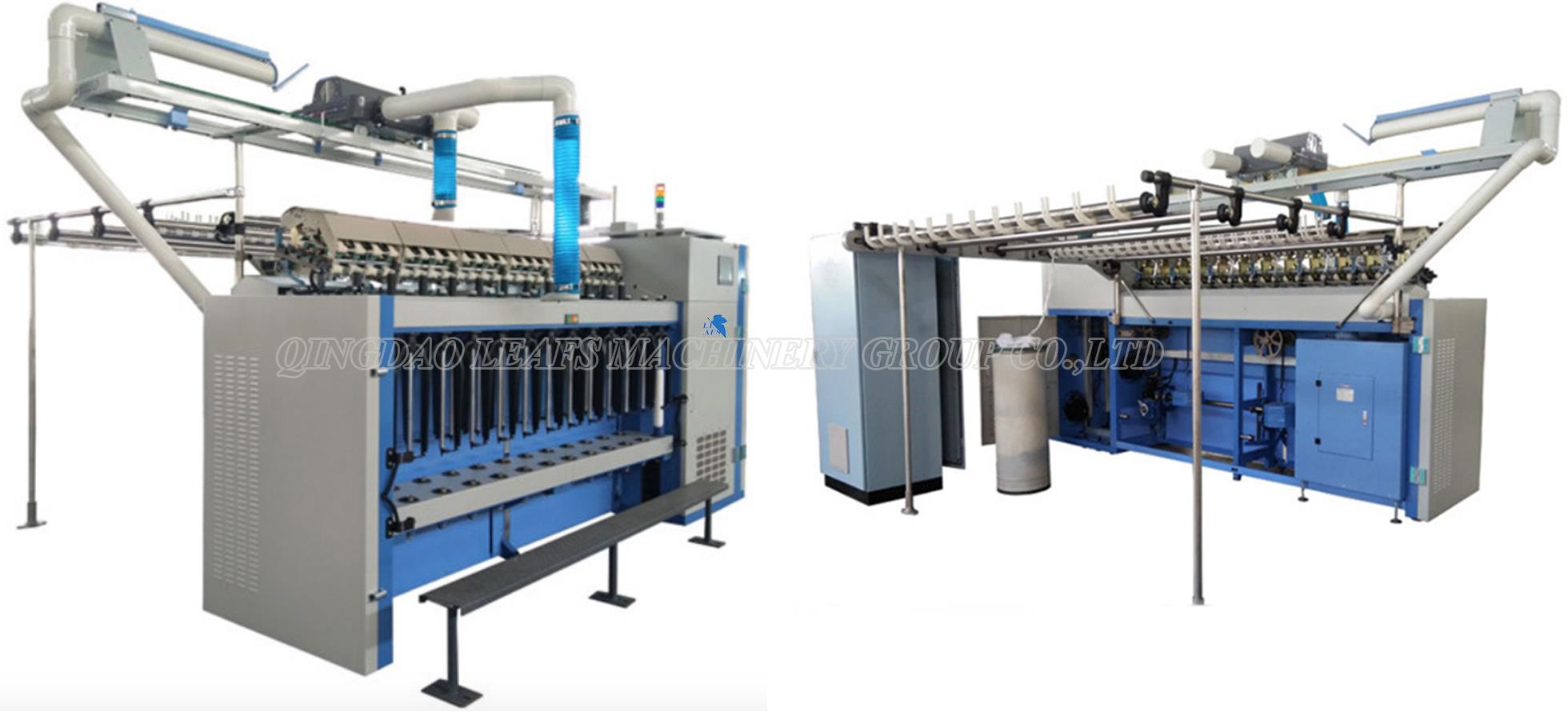

FA474 24 Spindles Roving machine

The machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT205 Laboratory Roving Machine is used to make roving from drawn sliver.

everyone is watching.

ꄴPrevious： LS519 Ring frame machine

ꄲNext： FA 81L Double Feed Draw Frame Machine

Four-shift linkage computerized type high speed suspend roving machine adopt the advanced computer numerical control technique ,getting rid of the cone drum structure ,mechanical forming structure ,quick lifting ,direction changing configuration and different speed configuration. It makes four main drive parts run independently ,and it is controlled by computer numerical control system and servo drive mode.Now it is the most advanced roving frames in mechanical-electrical integration of China.It is suitable for pure or blended processing of combed cotton fiber and artificial fiber.

Specifications
1.No. of spindles: 24 spindles
2.capacity: 20kg/h operation
3.Output sliver hank: 0.15 Ne
4.Spindle Speed: 600-750 rpm (electronically configurable)
5.Drafting system: four-over-four
6.Enclosed type flyer; aluminum pressure die-cast
7.Sliver can auto-stop feature, ergonomic stop-resume switches
8.Roll-away safety enclosures
9.Machine auto-off (in the event opening of safety doors)
10.Sealed lubricated bearings
11.Input can size: 18" diameter x 42" height
12.Output bobbin: 2" diameter x 12" height; build-up diameter: 6"
13.Roving bobbins specific for this machine (12")
14.Blue: 650 pcs
15.Red: 650 pcs
16.Green: 700 pcs
17.150 pcs of front and back drafting rollers with pre-installed rubber cots
18.50 pcs of middle drafting rollers with pre-installed rubber cots and apron tensioner
19.Distance clip specific for this roving machine
20.Green: 100 pcs Blue: 100 pcs
21.Sliver guide specific for this roving machine
22.Red (9 mm) : 100 pcs Green (11mm) : 100 pcs Black (16mm) : 100 pcs
23.Draft change gears: availability of spares for different yarn size
24.Twist change gears: availability of spares for different twist
25.Power supply: 3 Phase; 220V; 60Hz

26.Includes 1- unit Notebook PC with Program for monitoring
27.Processor: i5
28.RAM: 8GB RAMDDR4 ; HDD 512 GBSSD
29.Display: 15"
30.Operating System: Windows 10 64 bit with MS Office software installed 2019 version
31.With wireless mouse

32.Drafting multiple:4.2~12times
33.Twist range(T/M):18-80t
34.Length for fiber(MM):22-51
35.Cleaning device:Positive revolving belt with revolving suction device
36.Transmission device:Multiple motor drive
37.Control type:Computeried automatic control
38.Dimension(L *W*H):4800*4750*2620mm(Including sliver cans)
39.Weight:4000kgs
