LS519 Ring frame machine

To ensure high quality yarn spring,the machine features convenient operation and easy to management due to its high automation. It is suitable for spinning of cotton and synthetic fibers or their blends to produce weaving or knitting yarns.

Specifications

1.No. of spindles: 96spindles/ machine Layout: double-side 48 spindles /side
2.Spindle speed: up to 16,000 rpm

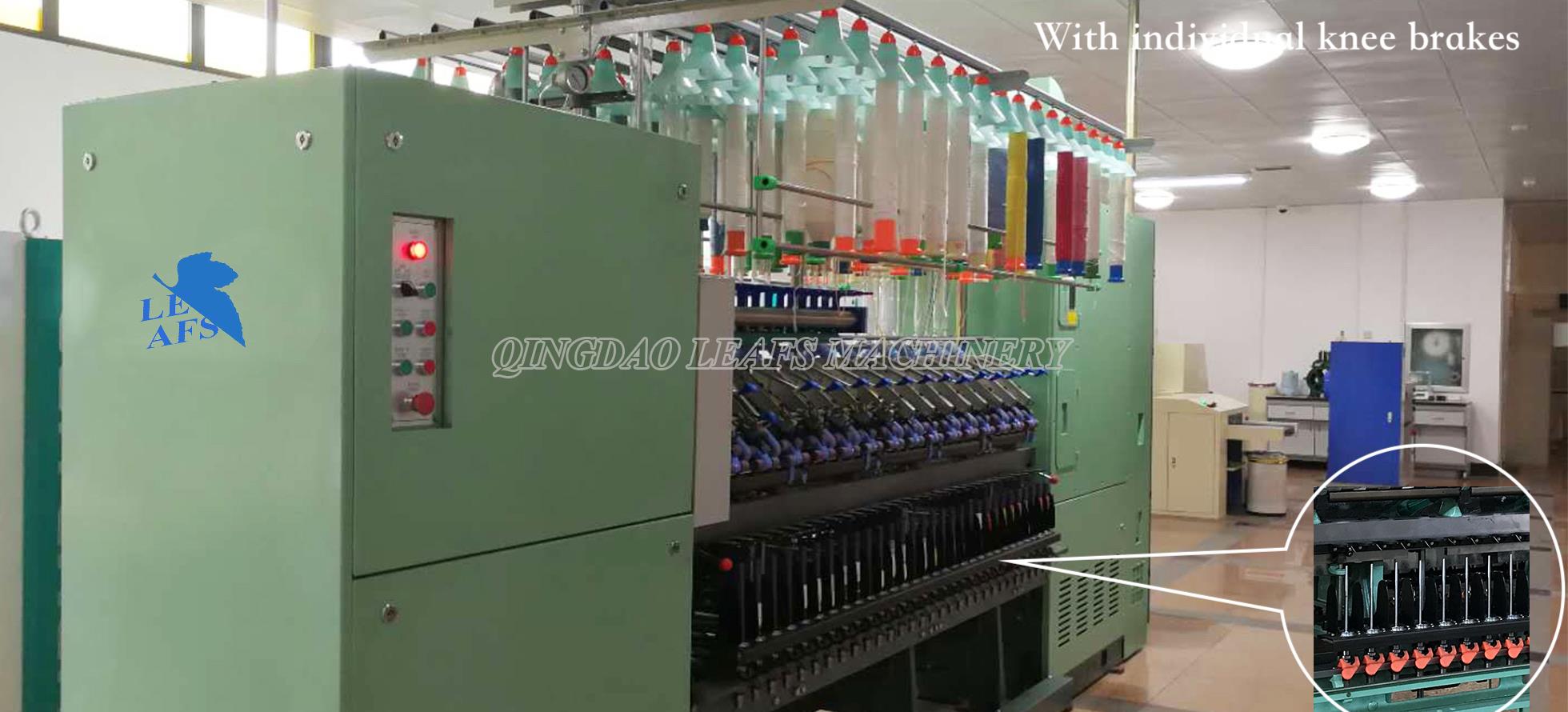

3.With individual knee brakes
4.Drafting assembly: three-over-three
5.Ring frame tube bobbin specific for this ring frame machine
6.Blue - 1,500 pcs Red - 1,500 pcs Green - 2,000 pcs
7.10,000 pcs ring travellers (No.2/0 UMDR)
8.1300 pcs of front and back drafting rollers with pre-installed rubber cots
9.50pcs of middle drafting rollers with pre-installed rubber cots and apron tensioner
10.Spacers specific for this ring frame machine
11.Brown (@2.5mm) - 500 pcs Gray (@2.75mm) - 500 pcs
12.White (@ 3.0 mm) - 500 pcs Yellow(@ 3.25 mm) - 500 pcs
13.Black (@ 3.5 mm) - 500 pcs
14.Aprons specific for this machine: 3,000 pcs
15.Ring frame spindle specific for this machine - 100 pcs
16.Draft change gears: availability of spares for different yarn size
17.Twist change gears: availability of spares for different twist
18.Spindle Tape: 50 pcs
19.Power supply: 3 Phase; 220V; 60Hz

20.Spindle gauge:70mm
21.Yarn count:6-120Ne(normal 10~45Ne)
22.Twist:230~1740(T/M)
23.Draft ratio:10~50times Rear Zone draft:1.06~1.53
24.Lift:205,180mm
25.Spinnable fiber:cotton fiber or their blends
26.Spindle gauge: 70mm
27.Yarn count:6-120Ne(normal 10~45Ne)
28.Twist:230~1740(T/M)
29.Draft ratio: 10~50times Rear Zone draft: 1.06~1.53
30.Lift:205,180mm
31.Spinnable fiber:cotton fiber and 65mm middle and long fiber chemical or their blends
32.Equipped with open auto-dropping lubrication and smoother driving.
33.Equipped with a closed circulating bath lubrication. It is clean and tidy. It ensure a sufficient lubrication and smoother driving.
34.Adopt the CAPD technology,optimize arrangement of middle frame,add up the spring pieces,ensure a better aseismic property and smooth running.
35.Adopt the high precision main shaft,and the driving is stable and reliable.
36.Optimize design for the air channel,improve the suction effect,ensure the least different air suction at high speed running.
37.For building can driving motion, using the precise worm box,eliminate the interim stopping,ensure without the coil slippage while winding-on high speed wider.
38.Dimension(L *W*H): 5670*900*2300mm
39.Weight:4000kgs
