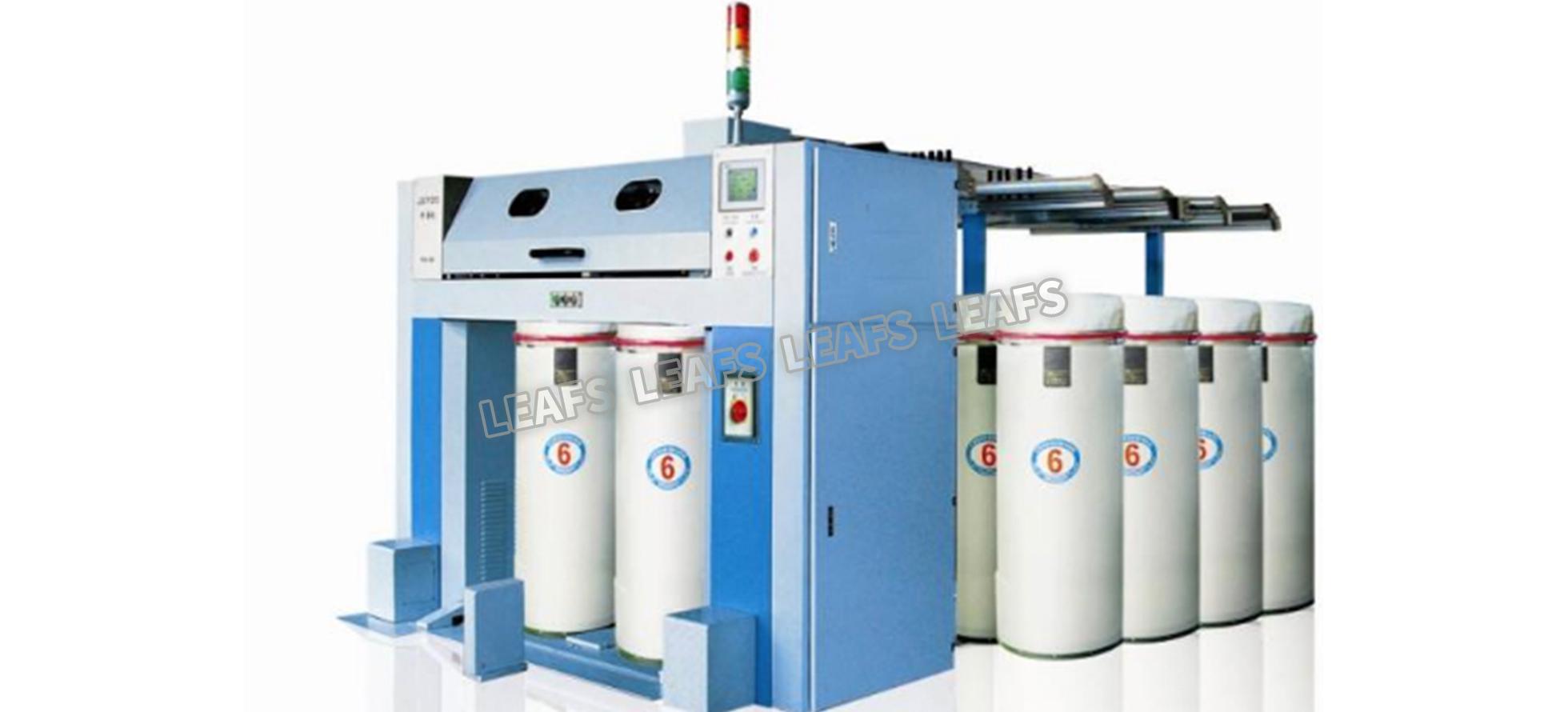

FA 81L Double Feed Draw Frame Machine

The machine is designed on the basis of the advanced technology.The curvilinear drafting system of 3 over 3 with pressure bar is suitable for cotton ,cotton type fiber and midiber and their blends of 22~76mm.Rocking the handle of the drive changing gear in the headstock can adjust draft range.The front pressing roller is equipped with a multi gear shift device, which is suitable for a variety of fibers.

everyone is watching.

ꄴPrevious： FA474 24 Spindles Roving machine

ꄲNext： FA304 Integrated Blow-card Machine

Specifications
1.Input: cotton and blended@ 28-mm ; Sliver hank: 0.12Ne to 0.15 Ne
2.Capacity: 75kg/h operation
3.Delivery speed: 60-150m/min(electronically configurable)
4.Sliver can auto-stop feature, ergonomic stop-resume switches
5.Suction for extraction of short fibers and dusts
6.Roll-away safety enclosures
7.Machine auto-off ( in the event opening of safety doors)
8.Sealed lubricated bearings
9.100 pcs HDPE Seamless sliver cans with caster wheel (Inside Ø = 40 cm; Thickness = 2 mm; Height = 112 cm; caster wheel height = 1 cm)
10.Power supply: 3 Phase; 220-Volts; 60Hz

11.Delivery number:2 holes
12.Total drafting multiple:5~13.5times
13.Main motor power:4kw
14.PLC is used by electric control ,making the control system more reliable and convenient.
15.Frequency converter can control steppless speed regulation ,which ensures steady increase in speed and strip quality.
16.The ideal guide photoelectric automatic stop device, machine holds
a photoelectric automatic stop device, sliver flowing frame.
17.In order to meet different spinning needs, the tension can be adjusted everywhere. The front tension adjustment mechanism of multi gear transformation is set in the front gear box, and its front tension range is adjustable within 1.06-1.0175.
18.Dimension(L*W*H):2200*950*1795mm(not including sliver cans)
19.Weight:2150kgs
