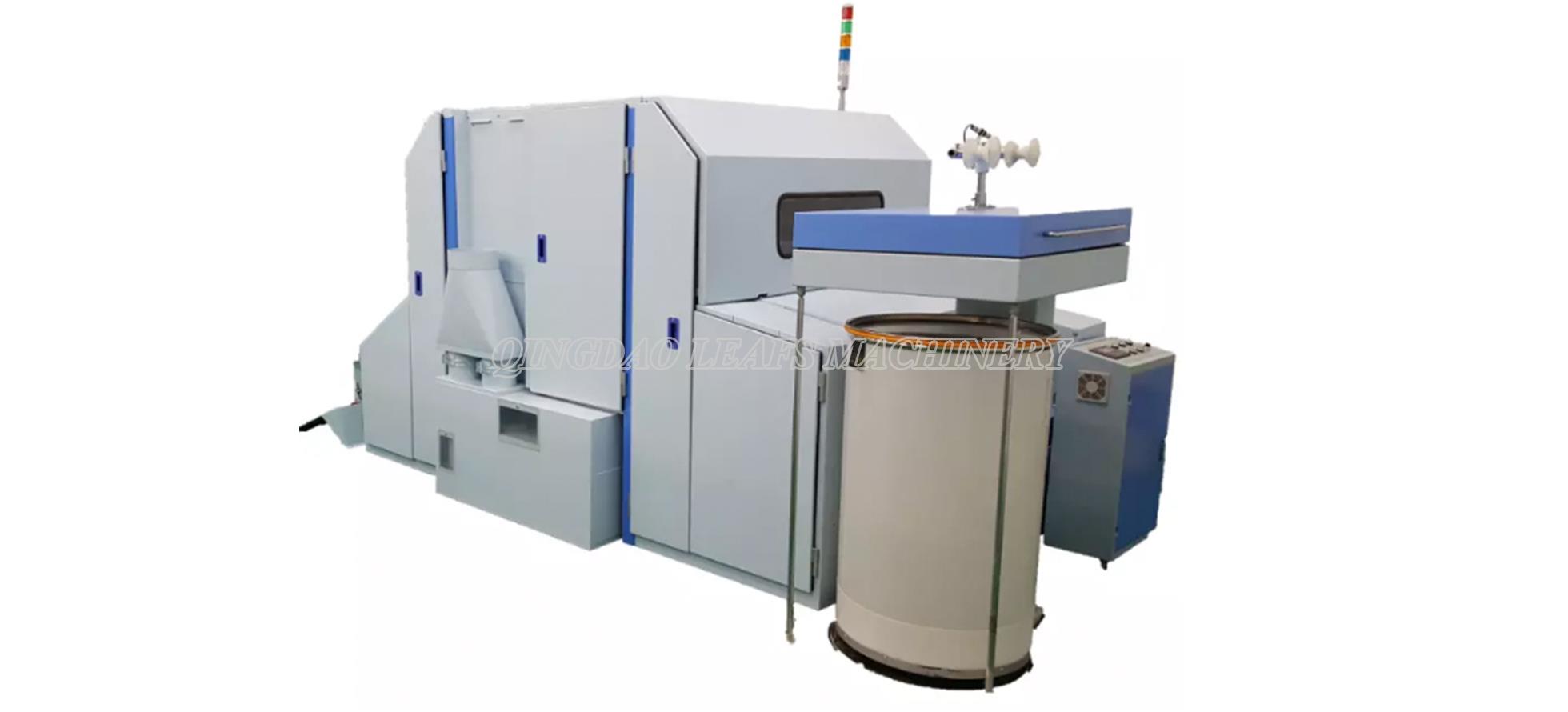

FA304 Integrated Blow-card Machine
The machine is suitable for cotton, or blended fibers containing impurities, and is mixed and combed into cotton sliver with uniform color, special for cotton spinning factory and printing and dyeing mill.
Specifications
- Input:cottonand blended@ 28-mm ; Sliver hank - 0.12Ne to 0.15 Ne
- Capacity:50kg/h operation
- Delivery speed: 25m/min
- Beater:27"diameter, 60ppsi
- Cylinder:51"diameter, 900ppsi
- Aerodynamic chute-feed for carding zone
- Sliver can auto-stop feature, ergonomic stop-resume switches
- Suction for extraction of short fibers and dusts
- Machine auto-off (in the event opening of safety doors)
- 40 pcs HDPE Seamless sliver cans with caster wheel (Inside Ø = 60 cm; Thickness = 2 mm; Height = 107 cm; caster wheel height = 4 cm)
- Includes 1-unit wastes suction device to be installed/ filter box
- Includes 1-unit Notebook PC with Program for monitoring
- Processor: I5
- RAM: 8GB RAMDDR4; HDD 512 GBSSD
- Display: 15"
- Operating System: Windows 10 64 bit wiht MS Officesoftwareinstalled 2019 Version
- Power Supply: 3 Phase; 220-Volts; 60Hz
- Sliver count:3.5~6.5g
- Layer weight:400~800g/m
- Total draft:68.7~152.Stimes
- Take in speed :823,938,1039rpm
- Doffer speed:4~46r/min
- Cylinder speed: 323,360,403r/min
- Continuous suction:air exhaust amount 2800-3500m3/h
- Dimension(L *W*H) :6800*2033*2600mm
- Weight: 7500kgs
