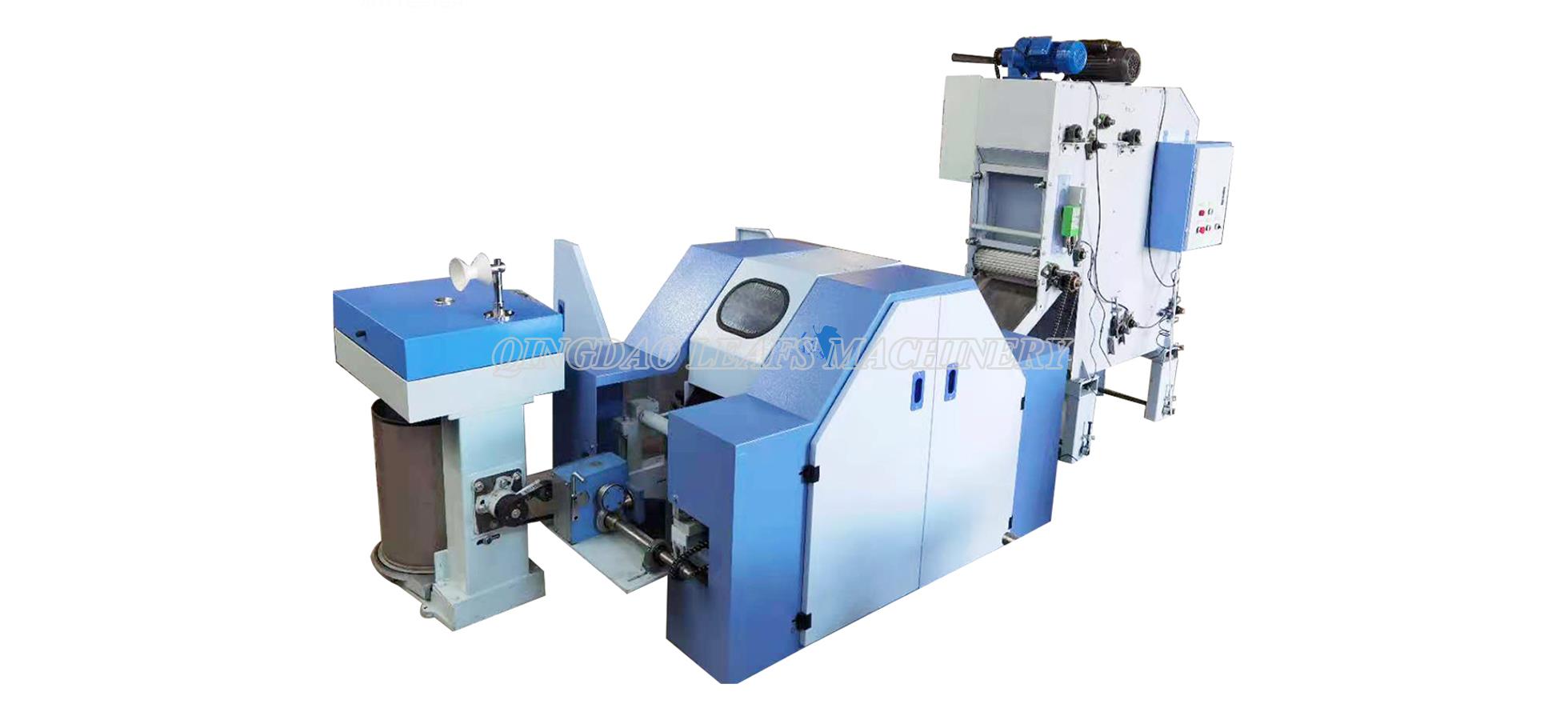

Sample Hard Fiber Opener Lab carding machine for wool ,cotton, and cashmere

The machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.

everyone is watching.

ꄴPrevious： FA304 Integrated Blow-card Machine

ꄲNext： Lab textile machine hard fiber opening machine

Features

1.Imported frequency converter control, high efficiency.

2. Mini type machine, save researching cost and easy to operate and maintain.

3. Can be used for wool fiber or chemical fibers.

4. Can equipped with villus bucket or hopper to improve the quality of output sliver/web.

5. It can produce web or sliver according to customer's selection.

6. It is driven by a 2.2kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.

7. With full-closed protective cover.

8. Two rollers feeding.

Specifications

Model	LS204AB
Speed	Adjustable(Frequency converter control)
Workingwidth	360mm
Cylinder width	360mm
Cylinder diameter	Φ450mm
Doffer diameter	Φ220mm
Licker-in roller diameter	Φ165mm
Work roller diameter	Φ165mm
Wiperoller diameter	Φ90mm
Feeding roller diameter	Φ60mm
Maximumfiberlength	Up150mm
Villus bucket power	1.5KW
Output capacity	10-15kg/h
Maine machine power	220V,60Hz,2.2kw
Dimension	1350mm950mm900mm(main machine)
	2300mm115mm110mm(package)
	900mm900mm1200mm(villus bucket)
Weight	800kg

Optional configuration

Villus bucket
