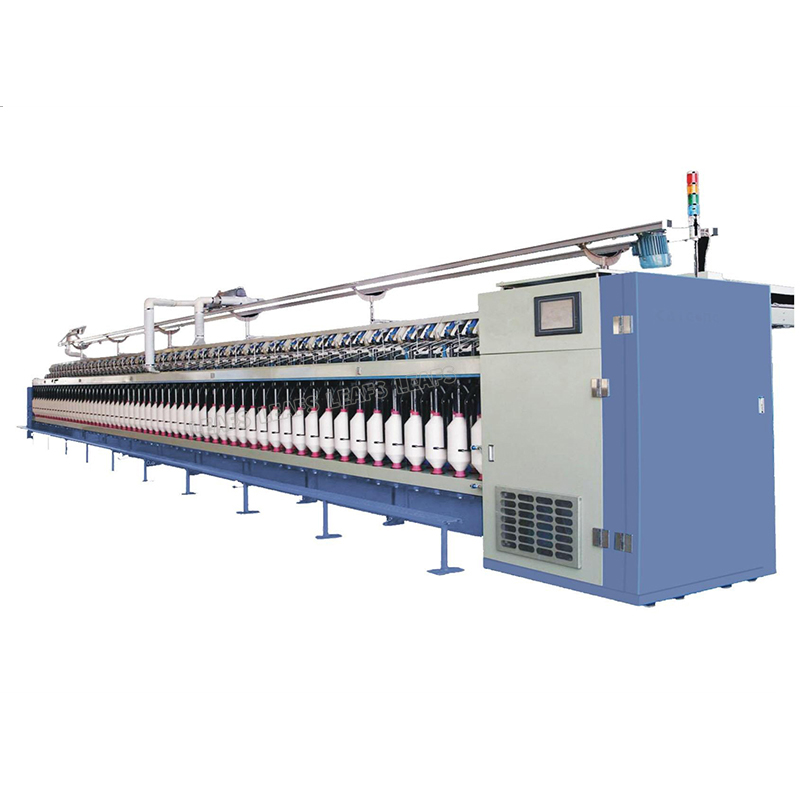

FA471 Roving frame machine
Specifications
|
Main Specification |
FA471 |
FA472 |
FA473 |
FA474 |
|
Debsity For Roving Yam (tex) |
220-1250 |
220-1250 |
220-1250 |
220-1250 |
|
Length For Fibre (mm) |
22-65 |
22-65 |
22-65 |
22-65 |
|
Spindle Number(piece) |
12,24,48...108,120,132 |
12,24,48...108,120,132 |
12,24,48...108,120,132 |
12,24,48...108,120,132 |
|
Spindle Gauge (mm) |
220 |
194 |
220 |
194 |
|
Pitch Gauge (mm) |
440 |
388 |
440 |
388 |
|
Spindle Number Per Pitch |
4 |
4 |
4 |
4 |
|
Drafting System |
4- (3) Roller Double- Shorl-Apron Drfting |
4- (3) Roller Double- Shorl-Apron Drfting |
4- (3) Roller Double- Shorl-Apron Drfting |
4- (3) Roller Double- Shorl-Apron Drfting |
|
Pressing Form |
Pendulum Weighting Arm Spring Pressing |
Pendulum Weighting Arm Spring Pressing |
Pendulum Weighting Armwith PneumaticSpring Pressing |
Pendulum Weighting Arm with Pneumatic Spring Pressing |
|
Roller Diameter (mm) |
φ28.5,φp28.5, |
φ28.5,φp28.5, |
φ28.5,φp28.5, |
φ28.5,φp28.5, |
|
φ28.5,φp28.5, |
φ28.5,φp28.5, |
φ28.5,φp28.5, |
φ28.5,φp28.5, |
|
|
Top Roller Diameter (mm) |
φ28.8,φp28.8, |
φ28.8,φp28.8, |
φ28.8,φp28.8, |
φ28.8,φp28.8, |
|
φ25,φ28.8. |
φ25,φ28.8. |
φ25,φ28.8. |
φ25,φ28.8.. |
|
|
Drafting Range |
4.4-13.3 |
4.4-13.3 |
4.4-13.3 |
4.4-13.3 |
|
Mechanical Spindle Speed(r/min) |
1600 |
1600 |
1600 |
1600 |
|
Spindle Process Revolution (r/min) |
1200 |
1200 |
1200 |
1200 |
|
Twist Range (twist/m) |
18.0-80 |
18.0-80 |
Continnously Adjustable |
Continnously Adjustable |
|
Bobbin Dimentions (mm) |
V 45x445 |
<P 45x445 |
<P45x445 |
<p 45x445 |
|
Take Up Package Dimenttons (mm) |
<P 152x400 |
<P 135x400 |
152 x400 |
<P135x400 |
|
Cleaning Device |
Postive Internittent Revolving Cleaner With Comb And Itinerarcy Pneumatic Sution Motion |
Postive Internittent Revolving Cleaner With Comb And Itinerarcy Pneumatic Sution Motion |
Postive Internittent Revolving Cleaner With Comb And Itinerarcy Pn&umatic Sution Motion |
Postive Internittent Revolving Cleaner With Comb And Itinerarcy Pneumatic Sution Motion |
|
Transmission Dimentions |
Three-shaft Linkage |
Three-shaft Linkage |
Four-shaft Linkage |
Four-shaft Linkage |
|
Control Type |
Computerized Model |
Computerized Model |
Computerized Model |
Computerized Model |
|
Man-machine interactin |
Touch Screen |
Touch Screen |
Touch Screen |
Touch Screen |
|
Winding Roller Transmission |
Bevel Wheel |
Bevel Wheel |
Left and Right Rotation Bevel Wheel |
Left and Right Rotation Bevel Wheel |
|
Spindte Roller Transmission |
Left and Right Rotation Bevel Wheel |
Left and Right Rotation Bevel Wheel |
Left and Right Rotation Bevel Wheel |
Left and Right Rotation Bevel Wheel |
|
Winding Power Shaft |
Servo Motor Driving |
Servo Motor Driving |
Servo Motor Driving |
Servo Motor Driving |
|
Yam Forming Angle |
Random |
Random |
Random |
Random |
|
Three Automatic Doffing |
Software |
Software |
Software |
Software |
|
Signal Display |
Five Lamps Indicated On Machine Headstock |
Five Lamps Indicated On Machine Headstock |
Five Lamps Indicated On Machine Headstock |
Five Lamps Indicated On Machine Headstock |
|
Tension Adjustment |
Software |
Software |
Software |
Software |
|
Tension Fine Adjustment |
Software |
Software |
Software |
Software |
|
Preventing Pinched Yarm |
Software |
Software |
Software |
Software |
|
Package Shoutder Collapse Preventing Device |
Software |
Software |
Software |
Software |
|
Winding Density Adjustment |
Software |
Software |
Software |
Software |
|
Twist Agree Changing |
Twist Gears |
Twist Gears |
Software |
Software |
|
Forming Angle Adjusting |
Software |
Software |
Software |
Software |
|
Bobbin Diameter(mm) |
q>350. q>400r q>500 |
(p350, q>400, <p500 |
q)350, cp400, (p500 |
q>350, <p400. q»500 |
|
Main Power(kw) |
10kw |
10kw |
12kw |
12kw |
|
Noise Standard (dB(A)) |
<85 |
<85 |
<85 |
<85 |
|
Dimension |
φ400 |
φ400 |
φ400 |
φ400 |
|
108 |
13610 x3560x2620 |
12234 x4310x2620 |
13610 x3560x2620 |
12234 x4310x2620 |
|
120 |
14960 x3560x2620 |
13384 x4310x2620 |
14960 x3560x2620 |
13384 x4310x2620 |
|
132 |
16250 x3560x2620 |
14562 x4310x2620 |
16250 x3560x2620 |
14562 x4310x2620 |
|
Dimension Spindle number |
φ500 |
φ500 |
φ500 |
φ500 |
|
108 |
13610 x4310x2620 |
12234 x4750x2620 |
13610 x4310x2620 |
12234 x4750x2620 |
|
120 |
14960 x4310x2620 |
13384 x4750x2620 |
14960 x4310x2620 |
13384 x4750x2620 |
|
132 |
16250 x4310x2620 |
14562 x4750x2620 |
16250 x4310x2620 |
14562 x4750x2620 |
|
Weight(t) |
10,11,12 |
9,10,11 |
10,11,12 |
9,10,11 |

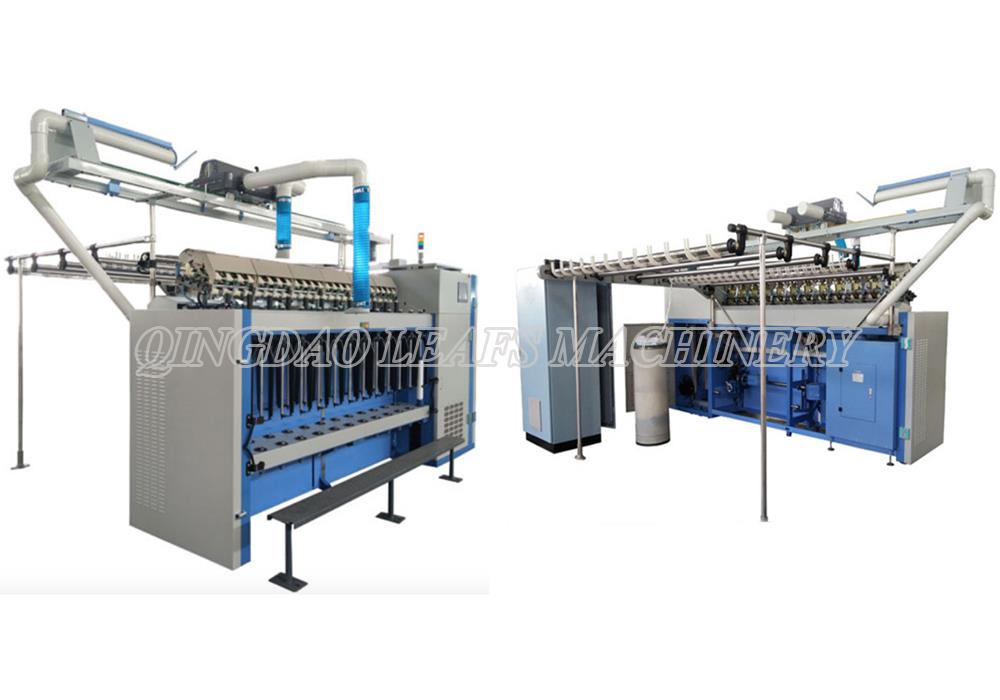

Lab Roving Machine Specifications
Specifications
No. of spindles: 24 spindles
capacity: 20kg/h operation
Output sliver hank: 0.15 Ne
Spindle Speed: 600-750 rpm (electronically configurable)
Drafting system: four-over-four
Enclosed type flyer; aluminum pressure die-cast
Sliver can auto-stop feature, ergonomic stop-resume switches
Roll-away safety enclosures
Machine auto-off (in the event opening of safety doors)
Includes 1- unit Notebook PC with Program for monitoring
Processor: i7
RAM: 16GB RAMDDR4 ; HDD 512 GBSSD
Display: 15.6"
Operating System: Windows 10 64 bit and MS Office(wireless mouse)
Sealed lubricated bearings
Input can size: 18" diameter x 42" height x 2.5"
Output bobbin: 2" diameter x 12" height; build-up diameter: 6"
Roving bobbins specific for this machine (12")
Blue: 650 pcs
Red: 650 pcs
Green: 700 pcs
150 pcs of front and back drafting rollers with pre-installed rubber cots
50 pcs of middle drafting rollers withpre-installed rubber cots and
apron tensioner
Distance clip specific for this roving machine
Green: 100 pcs
Blue: 100 pcs
Sliver guide specific for this roving machine
Red (9 mm) : 100 pcs
Green (11mm ) : 100 pcs
Black (16mm) : 100 pcs
Draft change gears: availability of spares for different yarn size
Twist change gears: availability of spares for different twist
Power supply: 3 Phase; 220V; 60Hz
