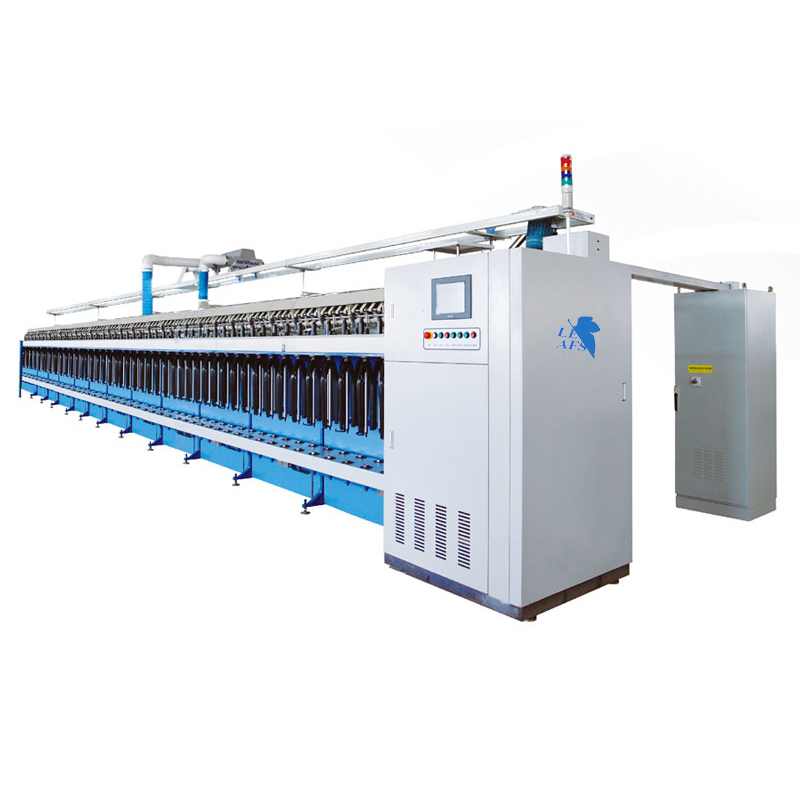

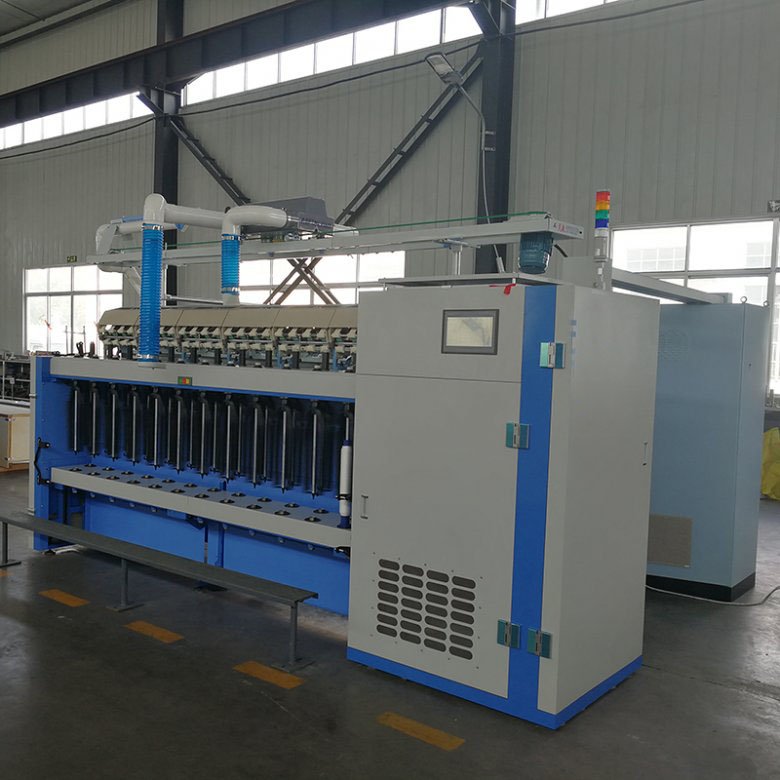

LSFA474 Mini Simplex/Fly/Roving Frame Machine

FA474 Four-Shaft linkage computerized type high speed suspend flyer roving frame adopt the advanced computer numerical control technique, get rid of the cone drum structure、mechanical forming structure、quick lifting、direction changing configuration and different speed configuration. It makes four main drive parts run independently, and it is controlled by computer numerical control system and servo drive mode. Now it is the most advanced roving frames in mechanical-electronic integration of China. It is suitable for pure or blended processing of combed cotton fiber and artificial fiber.

Features:

1. The twist value can be input directly on the function panel,so only drafiing changeable gears  required.
2. Sliver breakage protection system and constant tension spinning system.
3. Optimization of the design of the front drive and layout, the front layout is simple, good heat dissipation, easy to install and maintain. -Power off flyer auto-orientation,easy to operate.
4. The bridge shunt type wiring,electrical installation convenient reduce electrical signal interference.
5. With flyer intelligent variable speed programble spinning speed is greatly improved.
6. System a key to restore more energy,when the control system software parameters were broken ring, start a key to restore the initial state can be reduced to.
7. Network management can realize long-distance control.
8. Gear transmission is adopted to drive flyer and bobbins,the running speed is more than 1600r/min,transmission smooth,lower noise,high efficiency.

Specification:
