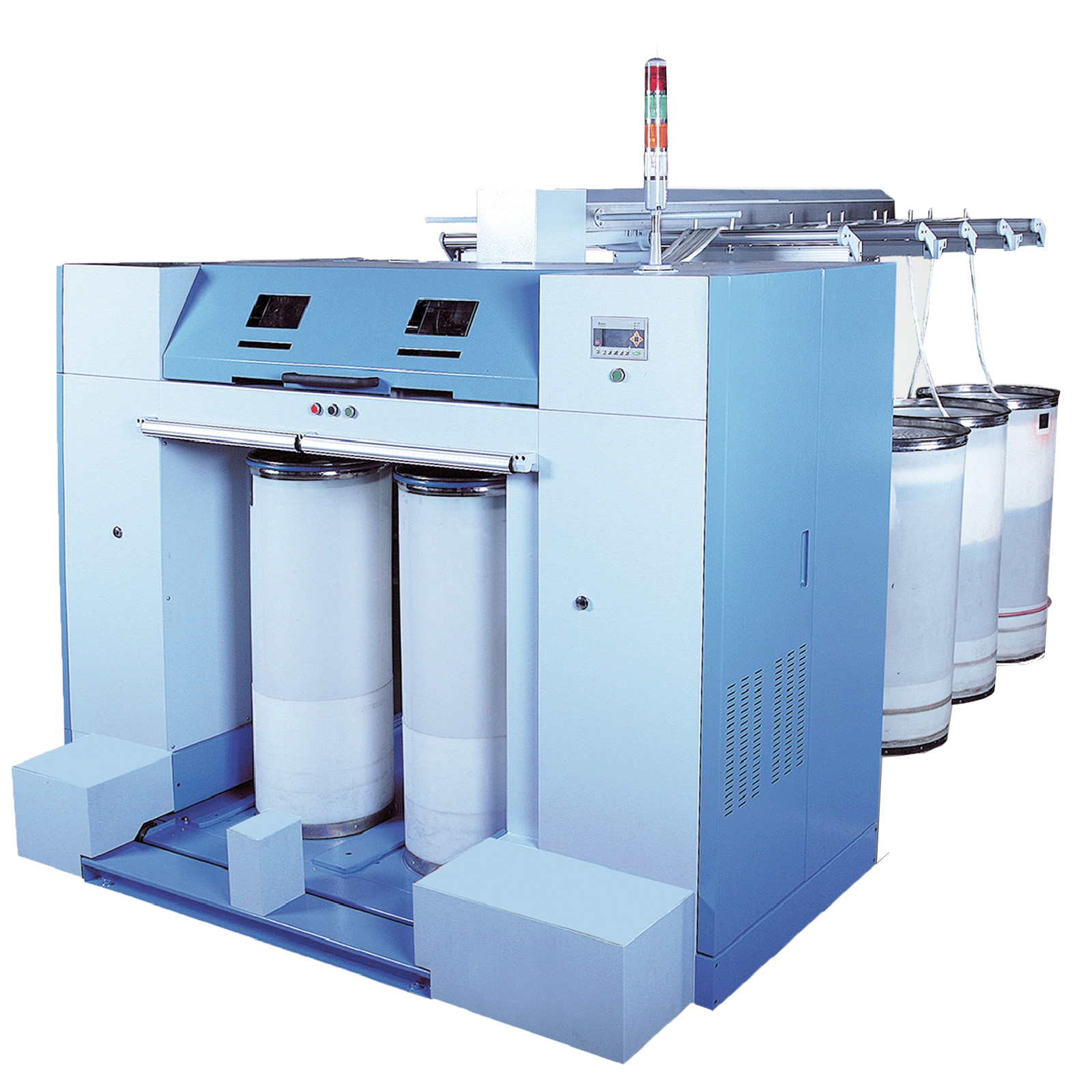

FA316 High Speed Draw Frame Machine
2..adopt high quality four-up and down guide roller.pressure stick style double-curve drafting structure. The sliver quality is good and stay.
3.Can choice the frequency converter to dominate stepiess timing turning round at an average speed favorable to the sliver quality.
4.The automatic can changer selected bu customers. Can decrease the labor intensity of workers and improve work efficiency.
FA316 High Speed Drawing Frame Application:
1.This machine is suitable for a wide variety of spinning fiber, and
output rate is high.
2.Four up and four attached guide roller, and pressure bar type dual
zone curve drafting structure, makes sure to have an excellent quality
and a quality stability.
3.Main motor users can control stepless speed regulation with choice
of frequency converter, it ensures steady increase in speed and strip
quality.
4.Programmable controller PLC and text screen operation is
conducive to the stability and the reliability of electrical control.
5.The ideal guide photoelectric automatic stop device, machine holds
a photoelectric automatic stop device, sliver flowing frame.
6.The user can choose the automatic doffing device, can reduce
labor intensity of operators, in order to improve work efficiency.
7.The user can choose eight-way detection device.
Specifications
|
Delivery number |
2 holes |
|
Max output speed |
600m/min |
|
Total drafting multiple |
5-14 times |
|
Drafting style |
five upper and four lower with pressure bar drafting |
|
Feeding sliver number |
6-8 pieces |
|
Suitable fiber length |
15-76mm |
|
Feeding tube size(mm) |
400,♦500,<|) 600, (|) 800,♦900,cp 1000 x height 900 or 1100 (1200) mm |
|
Tube size of output (mm) |
300, Medium350,<|> 400,4> 500 x height900or 1100mm |
|
Main frame exterior size(mm) |
2270 x 950 x 1645mm |
|
Weight |
2200kg |
|
Main motor power |
4.0kw |
150 pcs HDPE Seamless sliver cans (18" x 45" x 2.5")
Power supply: 3 Phase; 220-Volts; 60Hz
