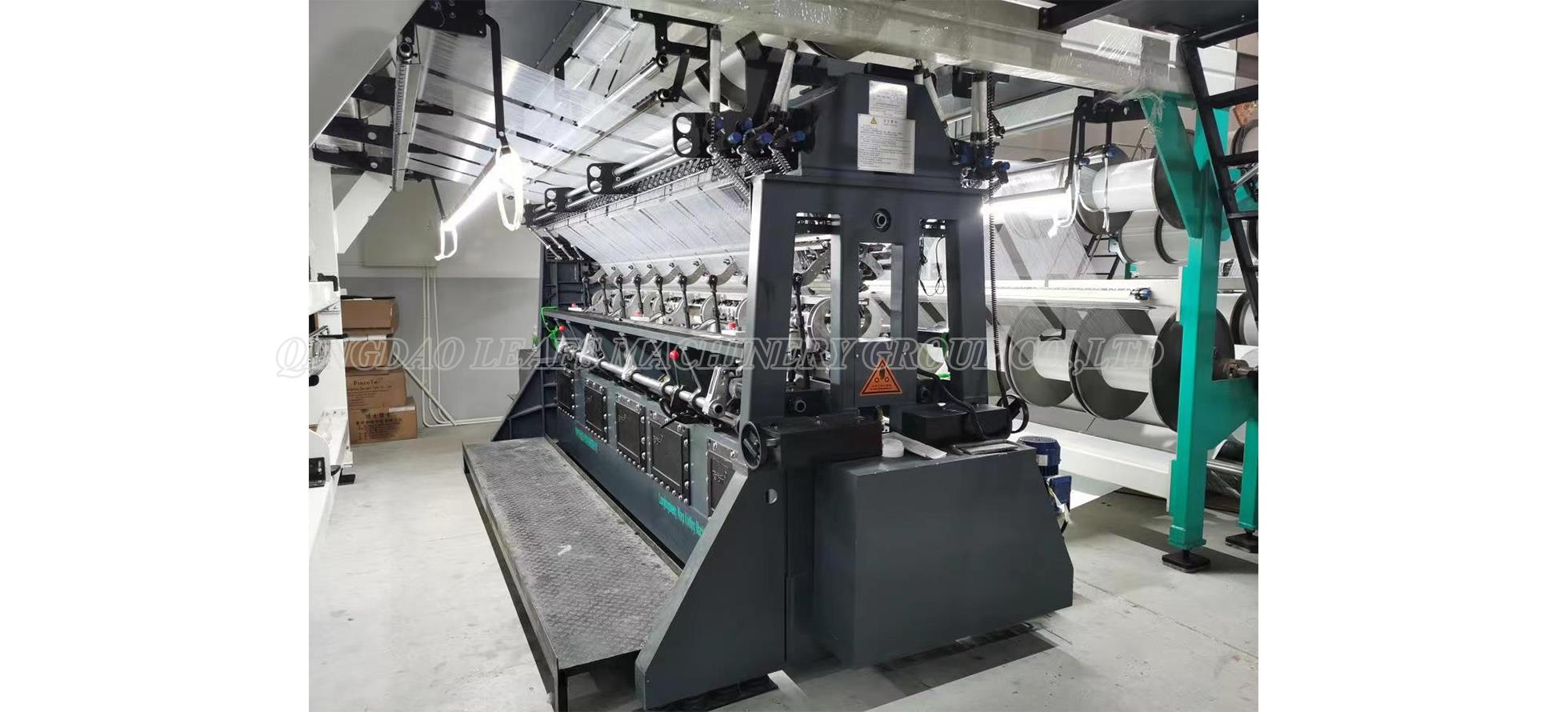

LS10028 Six-Bar Warping Knitting Machine
It is used to produce all kinds of thin 3D spacing mesh and plush fabrics, mainly
for shoe fabrics, automobile interior upholstery, luggage and other fabrics.
It adopts oil-immersed eccentric connecting rod mechanism and electronic let-off
and other synchronous belt drives.
Sample
Specifications
|
TypeKnittingMachine |
Raschel |
|
WorkingWidth |
2000mm |
|
Drivingoff |
Oiledsoakingconnectingwheelsystem |
|
Gauge |
28 |
|
Knock-overbar |
E28 |
|
Electronic-drivenpatternbars |
Six(6) |
|
Needlebeds |
Two(2) |
|
Yarnletoffdevice |
6beamsystem,electronicbeamcontrol |
|
Beamsize |
21inch/30inch |
|
Main motor |
Servo motor |
|
Servomotortorque |
Up50Nm |
|
Patterndrive |
Chainblocks |
|
Patternbarmovement |
Up20mm |
|
Standardbarmovement |
0. 1mmup40mm |
|
Autoyarnbreakstopsystem |
Laseryarnbreakstopsystem |
|
Feederspeed |
0up6m/min,adjustable |
|
Machinespeed(Max) |
600RPM± 400RPM |
|
Machinesize(LxWxH) |
5800x4500x3350 (mm) |
|
Grossweight |
5000kgs |
|
Mainmotorpower |
4kW |
|
Totalinstalledpower |
16 kW |
|
PowerSupply |
3Phase, 220V/ 60Hz |
|
spareparts5years |
|
|
Independentfrictiondrive |
|
|
-vibrationadjustablefeet |
|
|
Blockneedlesystem |
|
|
6positivefeedingrollsyarns,drivenstepmotor |
|
|
Electronicstopmotionincaseyarnbreakageandyarnrun-out |
|
|
ControlPanel |
|
|
Meterandrevolutionscounter |
|
|
Colortouch screen |
|
|
Abilityenterdesignsoperationalteachingmode |
|
|
Patternbars: |
separatetiming |
|
MachineSelection: |
Workingspeed,jogspeed,designscreens |
|
Connectivity: |
CentralPLCEthernetandUSB |
|
ProgrammingCapabilities |
|
|
Operationalmodeprogramming |
|
|
Programmablefeederandtakedownspeeds |
|
|
Patternbaroffset |
|
|
Samplecopyingthroughloadingsample |
|
|
eachneedlemovement,barwasableprogramstartsandstops |
|
|
eachrevolution,machineentersspeeddata |
|
|
ExternalPCProgram: |
Excelfile;cantransferdataUSB |
Accessories:
Electronically-drivenfeederrollergroups
●Numberrollergroups:Six(6)
●Servomotor-driven
●sequentialspeedactivation
●One(1)motionrollerandOne(1)pressureroller
ElectronicTakeDown
●Servo-motordriven
●sequentialspeedactivation
●Adjustingstitchfrom132pickspercm
BobbinSupport
●Two(2)units3-4bobbinseach
●Beams21 ''x30 ''
Woring in customer's factory
