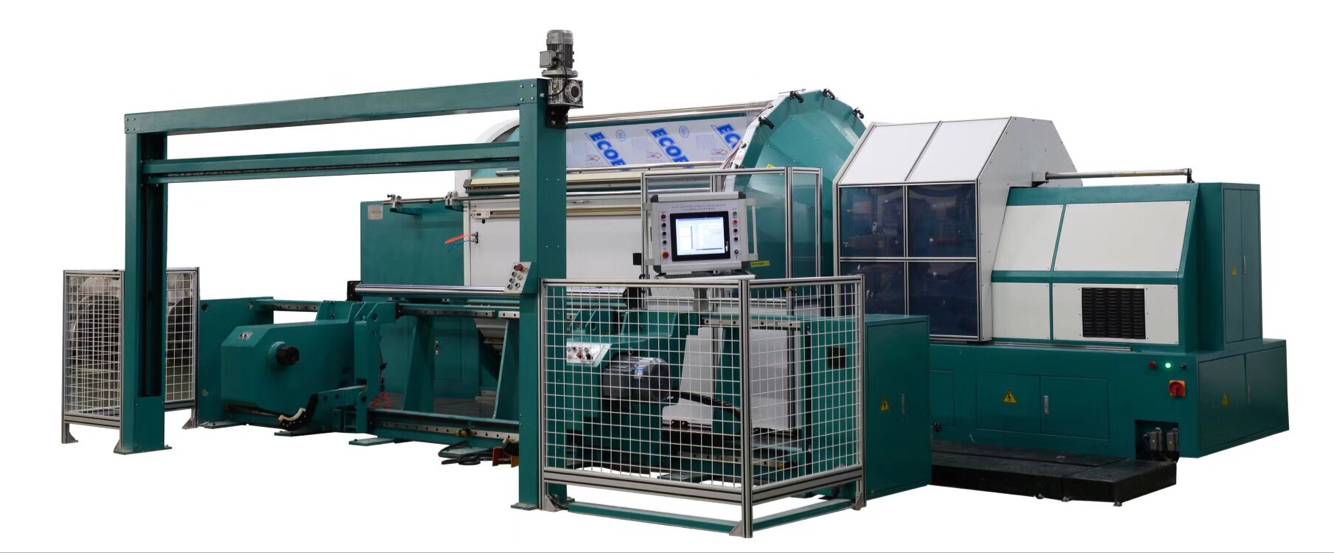

Lab equipment--LS196 Auto Sample Warping Machine
The machine is researched arid produced for drawing designs in textile enterprises.
Characteristics:high efficiency, good accuracy, save materials, it is used in the product development in the industries including wool spinning ,cotton spinning,chemical fiber,silk and colored woven etc.
Characteristics:high efficiency, good accuracy, save materials, it is used in the product development in the industries including wool spinning ,cotton spinning,chemical fiber,silk and colored woven etc.
Tecinical details
 |
 |
|
This is single yarn sample warper researched arid produced for drawing designs in textile enterprises. |
IMPORTED WEFT ACCUMULATOR Characteristics:high efficiency,good accuracy,save materials,It is used in the product development in the industries including wool spinning,cotton spinning,chemical fiber,silk and colored woven etc. |
 |
 |
|
Width:2,200mm,2,600mm Warping speed:0~1,000 meters per min.Yarn range:5~500 tex Warping length:21~560 meters(depening on yarn number or warping density) Bobbin cradle capacity:8pcs, 16pcs |
Beam winding dia:1,000mm Automatic doffing mechanism Advance beam Oiling and waxing device(optional) Power:41.98kw Machine occupied area:12,000×9,500×3,000mm(L×W×H) |
