Lab equipment-- LS392 12 Drums sizing machine

	Spindle number:2,4,8,12 ------ 24 Speed:20~500 meters per min.(Depending on the yarn thread sorts) Yarn range and applicable sort:5~500tex,cotton,wool,silk,hemp and chemical fabric,etc. Length counted mode:electronic,speed displayed in LCD

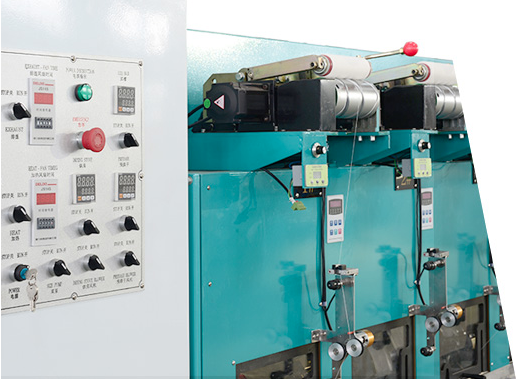

AUTOMATIC TENSION CONTROL Control mode:single spindle control,the freq.con.or stepless controller is used for cabbage rotational motor in drying room.The yarn guide cylinder is traced by the servo.
	MOTOR POWER 0.18kw per spindle (cabbage motor),0.75kw per spindle (yarn guide cyl.motor),1.8kw per spindle (drying room),about 1.1kw per spindle (heat cyclic motor),sizing pump motor 0.75kw,size trough heating 3kw.

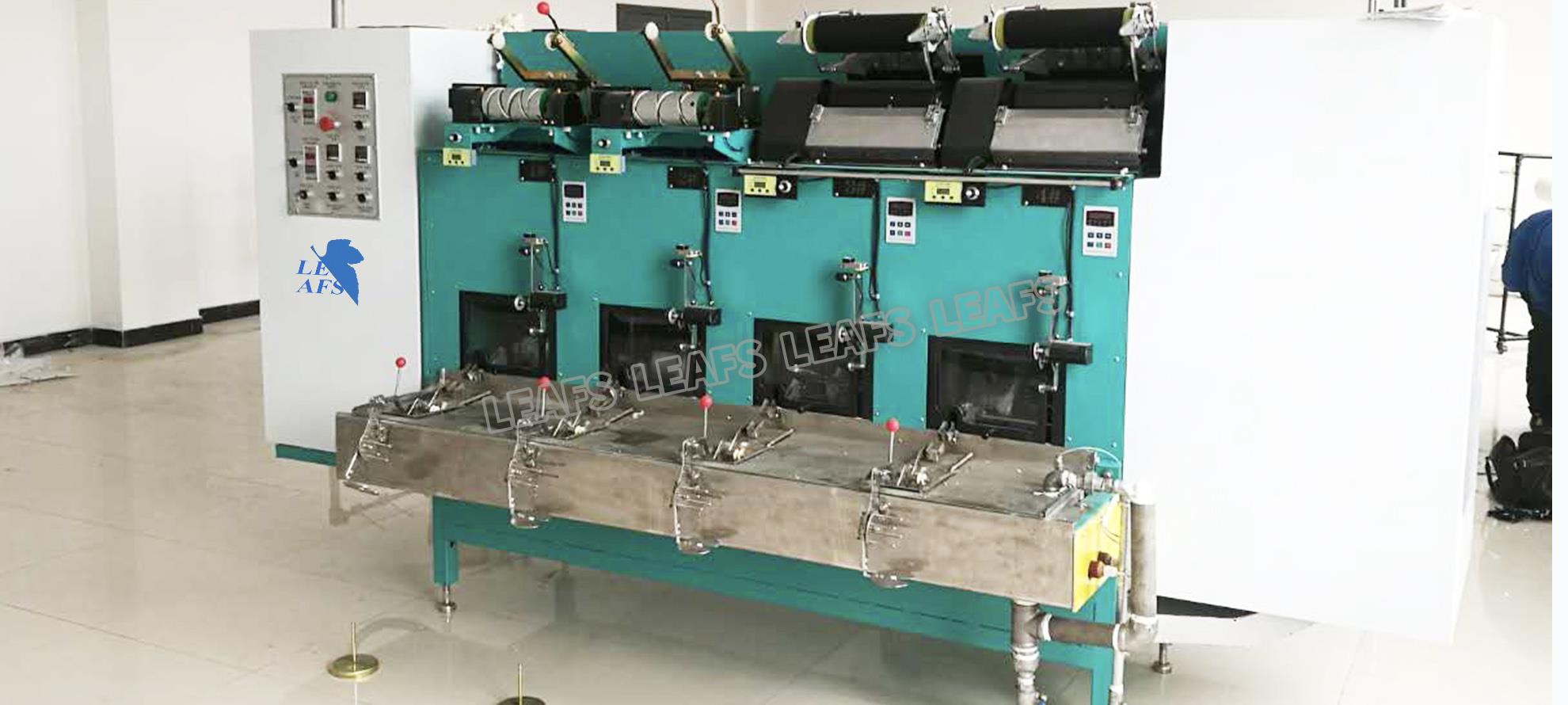

Machine occupied area:3,100×850×1,750(L×W×H)mm for 4 spindles. These 4 spindles are taken as reference, adding 1,900mm for each additional 4 spindles, no change for width and height.

Weight:for examples 1,000KG, 1,100KG(6 spindles)

Specifications

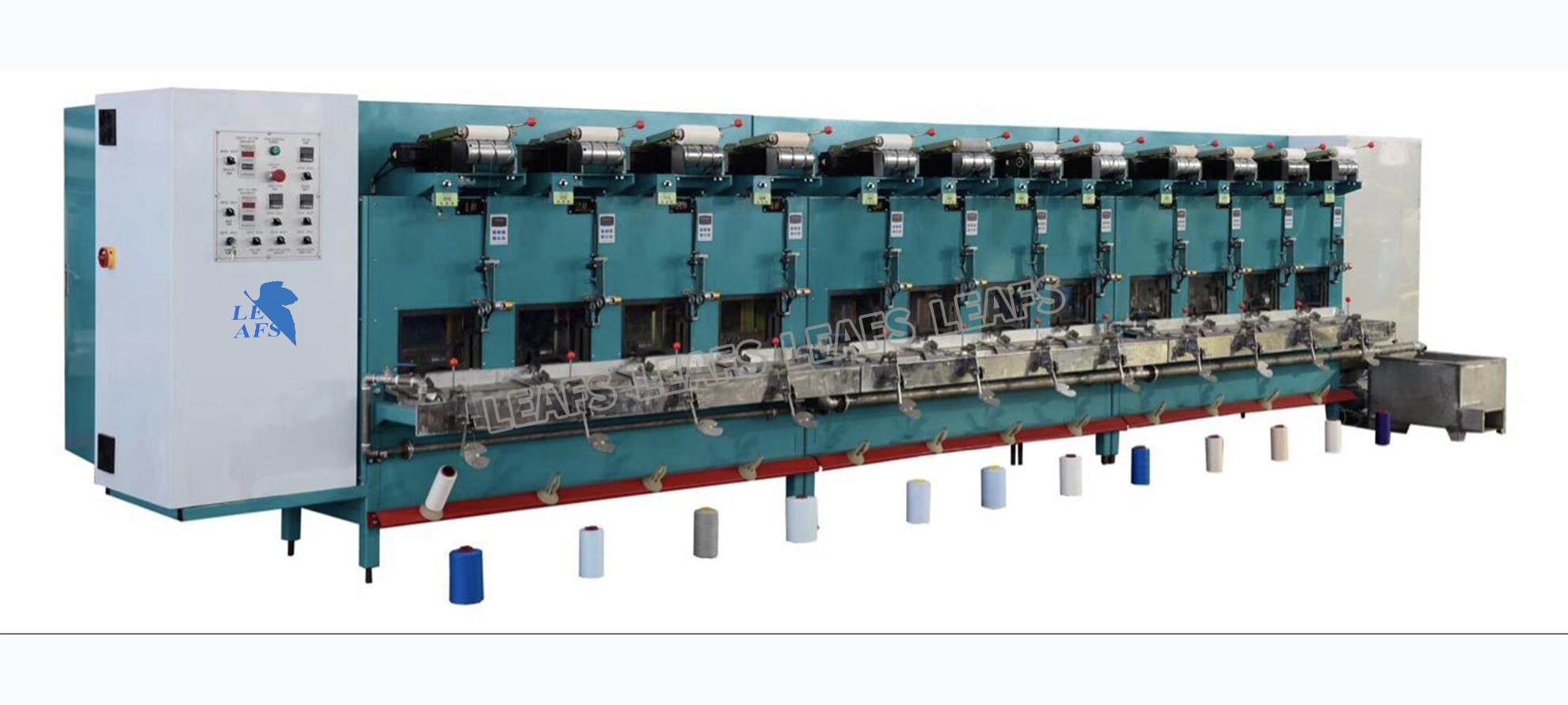

Numberdrums:12spindles

Speed: 500m/min (max)

Heated Pattern of Electricity

Drying Process Temperature: 50°C to 80°C (Adjustable)

Individual Stop Motion for Yarn Breakage

Individual Bath Temperature: 80°C max (Adjustable)

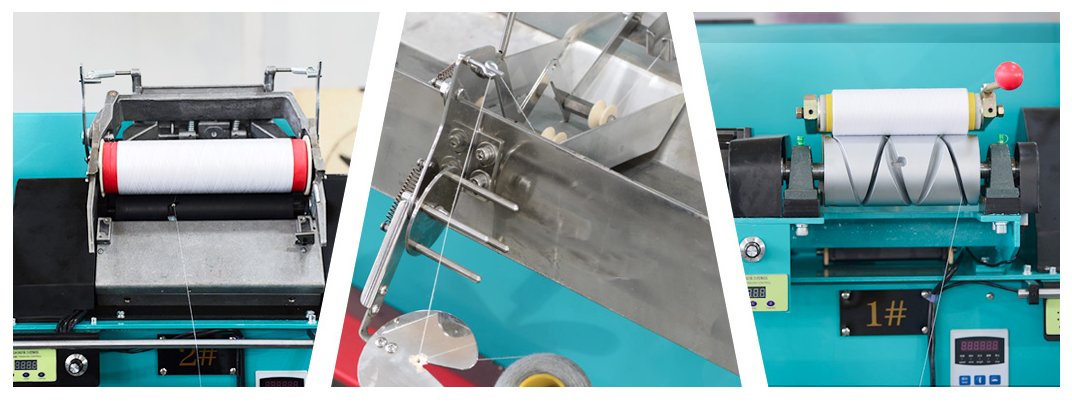

Cone drum holder size/ specifications: applicable for 4'20" paper cone

Paper cone size: 4' 20"

Quantity of paper cones: 10,000 pcs

Warpingwidth:310mm

PLCcontrol

Frontcreeltype

Singleyarn:17-20Ne

Power supply: Three Phase; 220 Volts; 60Hz

Yarn range and applicable sort: 5~500tex,cotton wool,silk ,hemp and chemical fabric,etc.

Length counted mode:electronic,speed displayed in LCD.

Control mode:single spindle control

The cabbage rotational motor in drying room is adopted by freq.con or stepless controller.

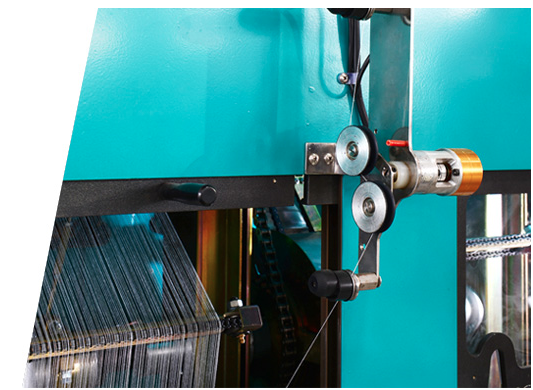

The yarn guide cylinder is traced by the servo.

Dimension(L *W*H):6900*850*1750mm

Weight: 1800kgs
