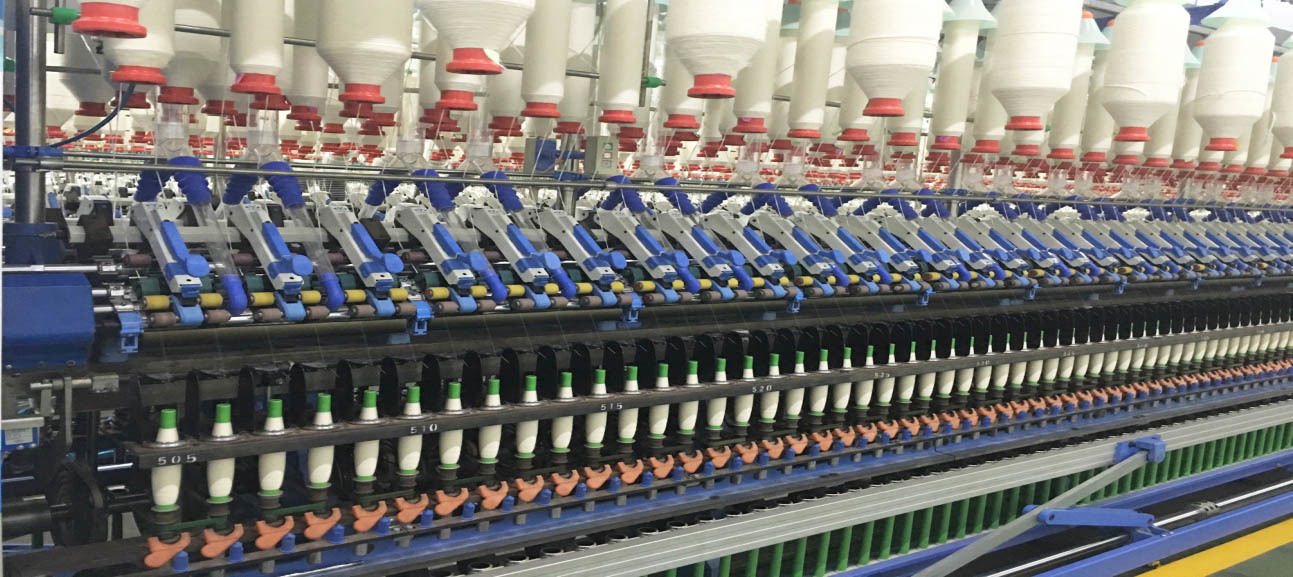

FA538 Ring spinning machine

Category：

Ring frame machine

FA 538 are made from the leading proposal ,advanced manufacturing methods and perfect special parts.Feeding a single simplex roving, it is suitable for spinning cotton, synthetic fibers and their blends to produce weaving and knitting yarns. The spinning processes can be set by means of man-machine dialogues through a Touch Screen Panel, and an interface or computer network is ready for expanding. The Auto doffer system can be an option for customer to make choice. High speed, high efficiency, good quality and good stability and reliability, it is obviously outstanding characters. lt can be linked with Auto Winder to become a Ring Winder.

Keyword:Yarn Spinning machine line

INQUIRE

DETAILS

Features

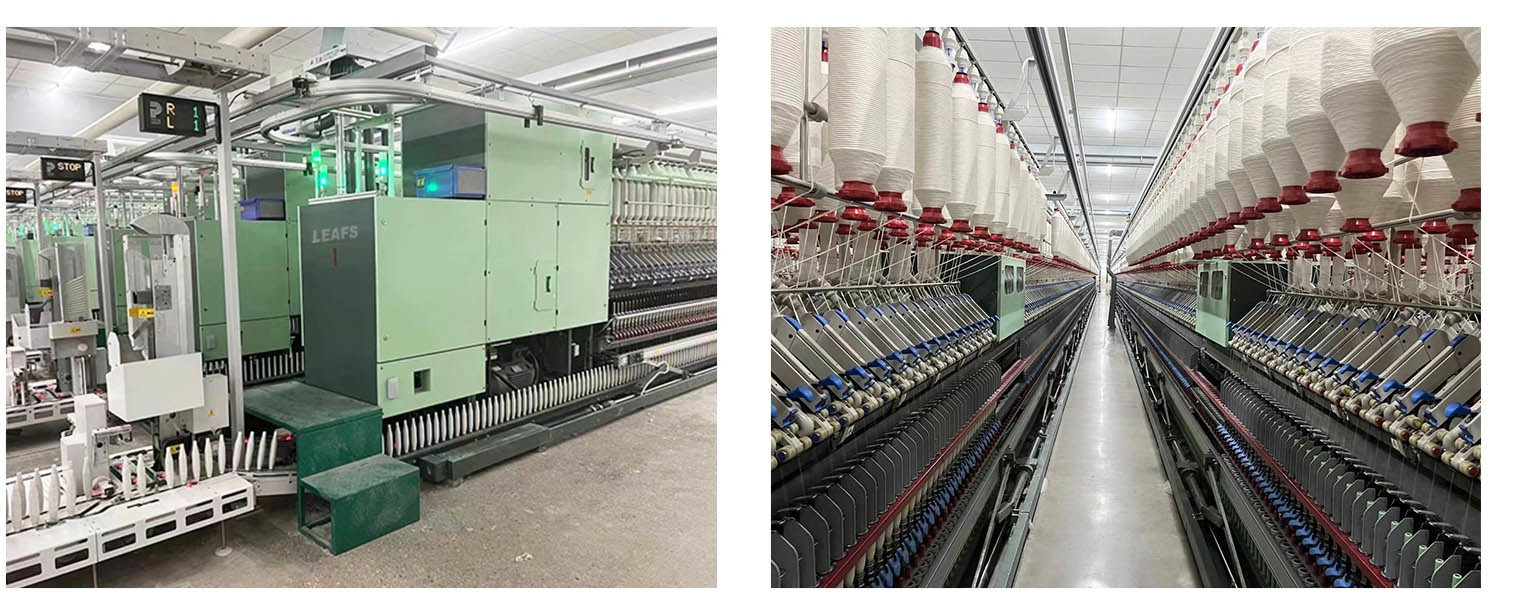

The Auto doffer is your best choice to decrease the cost and increase the output.

The Auto-doffer is structure combines the advantages from doffer in and out country. In and out swing and lifting of arms are controlled by servomotor and the lifting actions are accurate and reliable. Larger biston grippers have accurate and stable ejecting and fitting tube actions. The whole and endless.After the doffer mounted,spinning cost is reduced largely and the connection of ring springing machines to winders can be obtained.

High speed,high efficiency and stability.

1.CAPP technology improves the design of frame arrangement and ensures vibration free property and smoother running.
2.The spindle driving: the tape pulley is made from ABS material a tapered type locking system for pulley,reduce the weight of pulley, reduce the power consumption and noise, it makes a smooth driving, high precision and a excellent performance at high speed.
3.The maximum mechanical speed for spindle is upto25,000 rpm
4.Both headstock and off-end driving system drives in synchronism,ensure driving precision.

Cleaning ,silence and better environment.

The headstock is equipped with a suitable closed circulating bathing lubrication and a steel helical gear driving which ensure a sufficient lubrication and smoother drining. The headstock also can be equipped with open auto-dropping lubrication and catching oil pan. Optimum design of variable cross section air channel,ensure bowest load on the headstock and tailstock even in high speed and improve suction effect.

Advanced design,simple operation and better yarn quality.

1.Front bottom rollers in driving unit, which are without mechanical periodic waves, middle top rollers covered with carbon fiber ensure the superior spinning quality.
2.Synchronizing drafting and driving system avoids the twist vibration and torsion of rollers and dexreases the end breakage on the long machine.
3.Equipped with the newly manual spindle brake to simplify the operation of tenders and increase greatly the piecing rate.
4.An imported servo controller controls the lifting of ring rails. Winding types can be adjusted by man- machine interaction and the operation is simple and convenient.
5.The drining system is equipped with worms and worm wheels which are of nonclearance design with high precision so that cam stagnation is eliminated and finished cops without coil slippage can be obtained during winding in high speed.

Specifications

Spindle Gauge	70 mm (75mm)
No.of spindles	From 600 up to 1200 spindles with increment by 24
Lifting	205,180mm (Bare blade type Spindle) 200,180mm(Aluminum type spindle)
Ring Diameter	Φ35,Φ38,Φ40,Φ42,Φ45mm
Yarn Count	4.9-97.2tex(120-6Ne)
Twisting	230-1740 (T/m)
Spindle Speed	12000-25000 (rpm)
Draft Ratio	Total draft:10-50 Rear Zone draft:1.06-1.53
Twist Direction	Z or S
Draft System	3 line rollers,double aprons(long and short),pendulum arm weighting
Spindle	Aluminum type or bare type with knee brake
Roving Creel	Φ128x320mm Bobbin hangers of four rows in single tier Φ152x406mm Bobbin hangers of six rows in single tier. Φ152x406mm Bobbin hangers of five rows in single tier.

Optional

Compact spinning system Auto doffer system

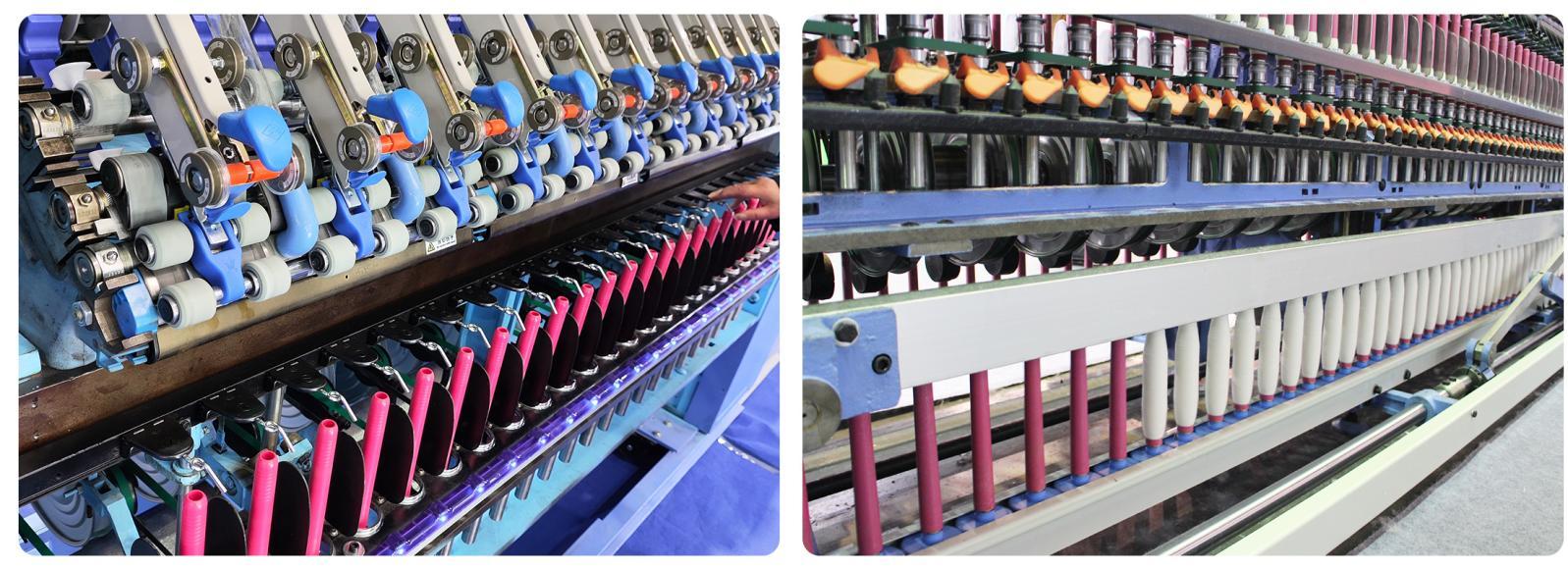

Four roller light pressurized compact spinning system

Adopting regular apron on ring frame machines' original cradle to achieve stable running and reach the requirement of compact spinning.

1.We adopt four roller compact spinning and Siro spun system to do remodelling on ring frames.Sound structure design, excellent spare part manufacture and remarkable yarn effect.

2.Yarn is more compact and has better finish. Yarn hairiness decreased obviously.Above 3mm of tube yarn, hairiness can be reduced more than 60%

3. Strength is increased by 10%-15%, compared with ring spinning.

4.CV% is better than ordinary yarn.

5.We can use a lower level of textile raw materials to produce the same quality of yarn as traditional ring spinning of spinning frame or use same raw materials to make out of higher quality yarn.

6.Breakage rate and fly decreased, hence the output increased obviously, the intensity of operative worker decreased significantly and the corporation cost declined.
