Grooved Drum for Yarn Winding Machine/ Doubling Winder/Automatic Winder

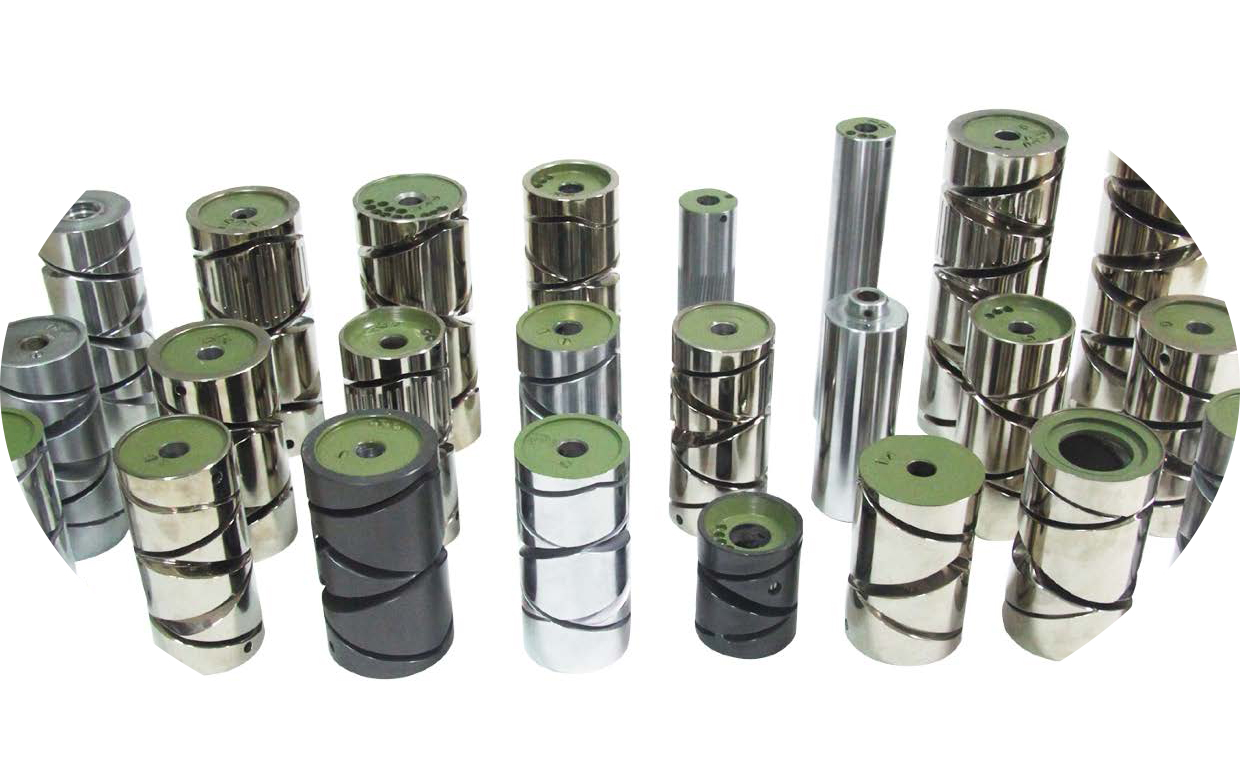

Dictated by the textile market requirement ,our metal grooved drum could help the winder to get high performance ,high speed and high quality yarn.Our main products are metal grooved drums,anodizing grooved drums,super plastic alloy grooved drums,Ni-P alloy grooved drums,roller and friction drum made of steel.

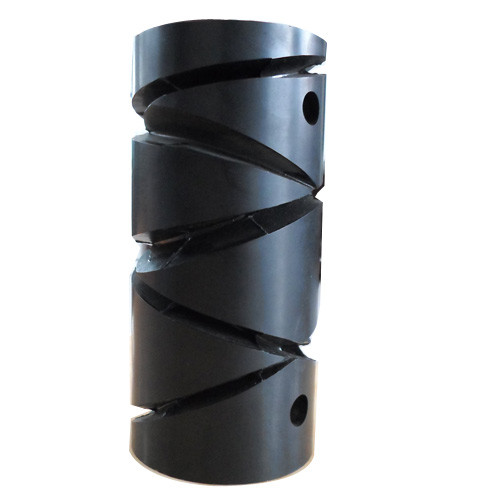

Super plastic alloy grooved drum
1.Modified groove curve, steady yarn linear density and perfect forming.
2.Ultra-fine processing, high smooth finis;h (Ra<0.4μm).
3.We plating Cr on the surface, the hardness of the surface is higher than HV900.High wear resistance,static elimination, less hairiness and surface inferior smooth processing.
4.The dynamic balance of our grooved drums are highly accurate, perform reliably, the li near velocity can reach 1200m/min.
5.Light weight and energy saving.

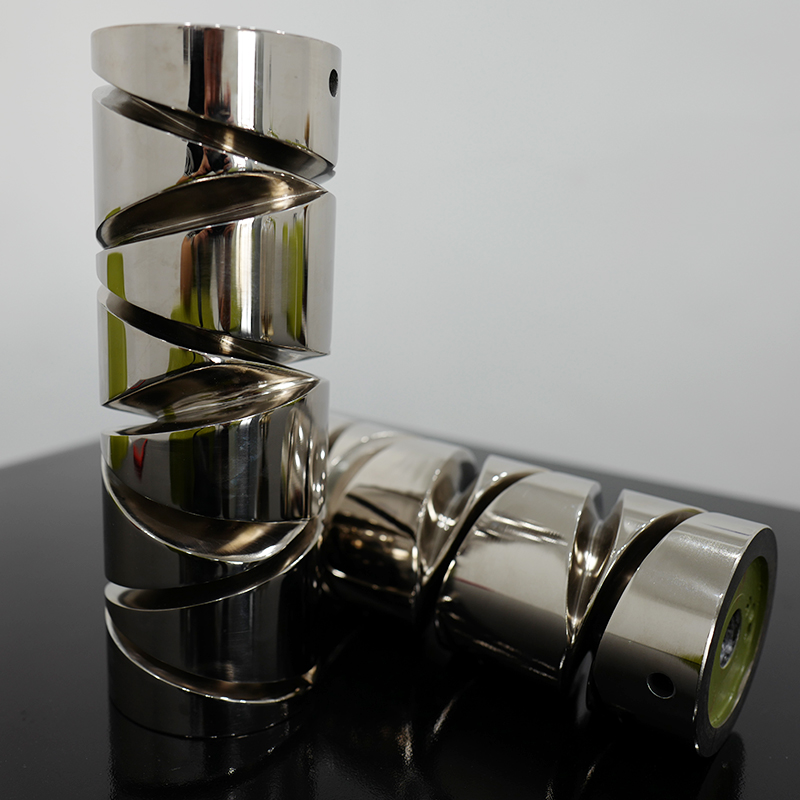

Ni-P alloy grooved drum
1.Modified groove curve, ultra-fine processing, mirror polished surface, and high smooth finish (Ra<0.2 μm).
2.We plating Ni-P on the surface, coating has high density,small crystallization,low good uniformity, excellent corrosion resistance. v porosity,Drum groove has complete
3.Ni-P alloy coating is dealing with aging hardening and high temperature heat treatment. The hardness of the surface of Ni-P coverage of coating, and the coating has
grooved drum can reach HV1100, it has the advantages of high wear resistance, high toughness, and low internal stress.
Better wear resistance, better corrosion resistance, better uniformity, and longer life recycle.

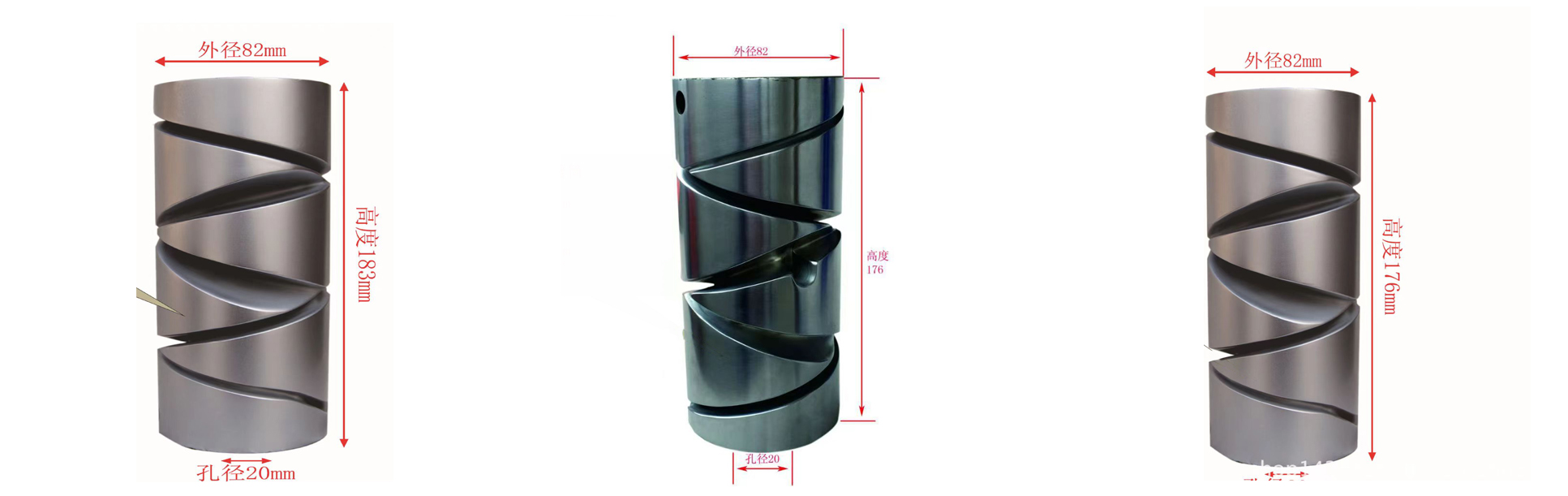

Specifications
|
Model |
Turns |
Lead |
hole diameter |
outer diameter |
Length |
Package angle |
|
LS-Z |
2 |
152 |
cone type |
94mm |
166mm |
3°30'--5°57' |
|
LS-J |
2.5 |
152 |
20mm |
82mm |
176mm |
3°30'--5°57' |
|
LS-S |
2.5 |
147 |
20mm |
82mm |
183mm |
0° |
|
LS-B |
2.5 |
154 |
20mm |
82mm |
176mm |
0° |
|
LS -Ni-P-J |
2 |
146 |
20-25mm |
95mm |
176mm |
3°30'--5°57' |
|
LS-Ni-P-J1 |
2.5 |
150 |
20mm |
82mm |
176mm |
5°57'--9°15' |
|
LS -Ni-P-S |
2 |
146 |
20-25mm |
95mm |
176mm |
0°--3°30' |
|
LS-Ni-P-S1 |
2 |
147 |
20mm |
82mm |
185mm |
0°--3°30' |
|
LS-Ni-P-S2 |
2.5 |
147 |
20mm |
82mm |
176mm |
0°--3°30' |
|
LS-Ni-P-S3 |
1.5 |
130 |
20mm |
90mm |
147mm |
0° |
|
LS-Ni-P-200 |
2.5 |
200 |
20-25mm |
95mm |
230mm |
0° |
|
LS-Ni-P-2001 |
2.5 |
200 |
20mm |
82mm |
240mm |
0° |
|
LS200-2 |
2.5 |
200 |
20mm |
82mm |
240mm |
0° |
|
LS-250 |
3.5 |
250 |
20-25mm |
100mm |
280mm |
0° |
|
LS-L |
0 |
Max200 |
19mm |
50mm |
219mm |
0°--3°30' |
|
LS-M |
0 |
Max178 |
17mm |
65mm |
205mm |
0°--3°30' |
|
LS-M1 |
0 |
200 |
19mm |
50mm |
279mm |
0°--3°30' |

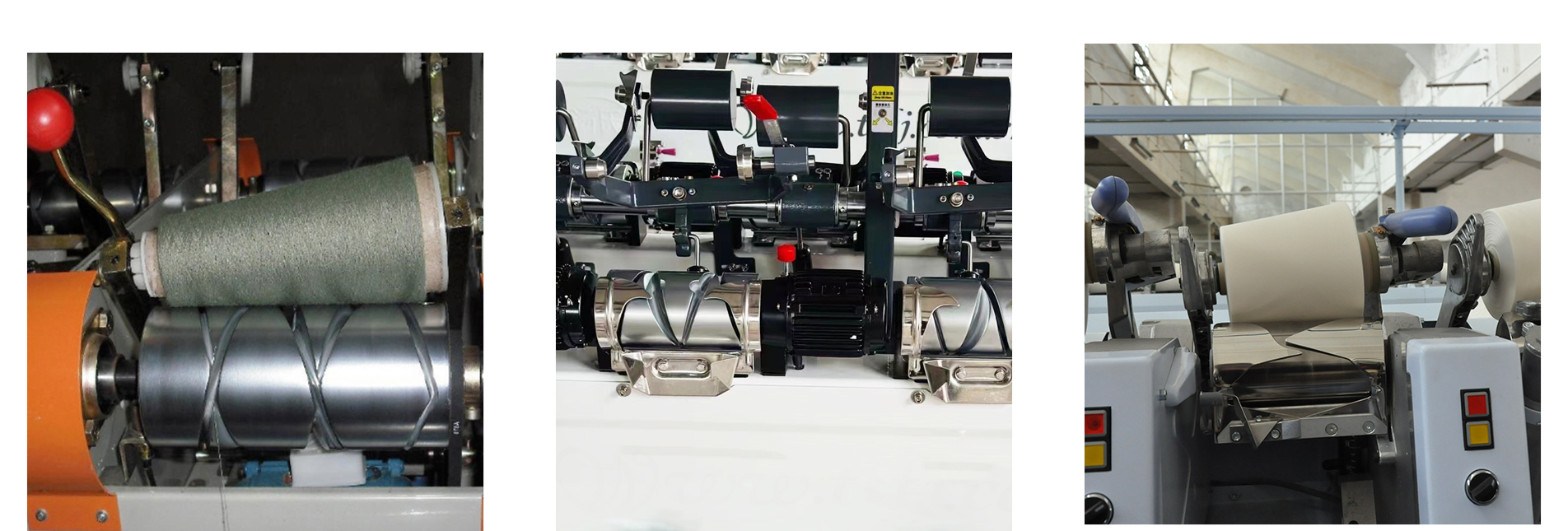

Customer show
