Sample electric driving wool ring spinning machine with inverter motor
This machine is suitable for the pure spinning or mixed spinning engineering of wool and chemical fiber by which it feeds the thick yarns with or without twists to go through the procedures of stretching, twisting and rolling before becoming a single wool thread with a certain Nm.
Features
The frame is suitable for different length of fibers because 3-roller and 2 apron drafting system is used. It is also fitted with SKF PK1600 drafting arms.The press of drafting arm is adjustable. The yarns are with good evenness because of strong control to fibers. Automatic dripper oiling motions assure lubrication to drafting gears.
New spindle ZD3213 is used. It is with good absorption of vibration and super endurance, and can be suitable for high operating speed and output.
It adopts AC tranducer and during a certain period of doffing. It can change its operation speed according to the graphs, which can effectively reduce the breaking points. Under the control of PLC, it realizes the automatic control on the operation of whole machine and demonstrates spindle speed, line speed of front roller, twists, yields, length and other technical parameters.
Specification
|
Model |
LS519W |
|
Can process fiber length range |
2-4 inches |
|
Number of spindles |
96 (2 sections ,@48spindles double sided) |
|
Drive motor |
Single drive |
|
Drafting system |
SKF PK1600, equipped with front roller cleaner |
|
Ring diameter |
55mm, Steel Chrome |
|
Spindle gauge |
82.5mm |
|
Tube Height |
240mm |
|

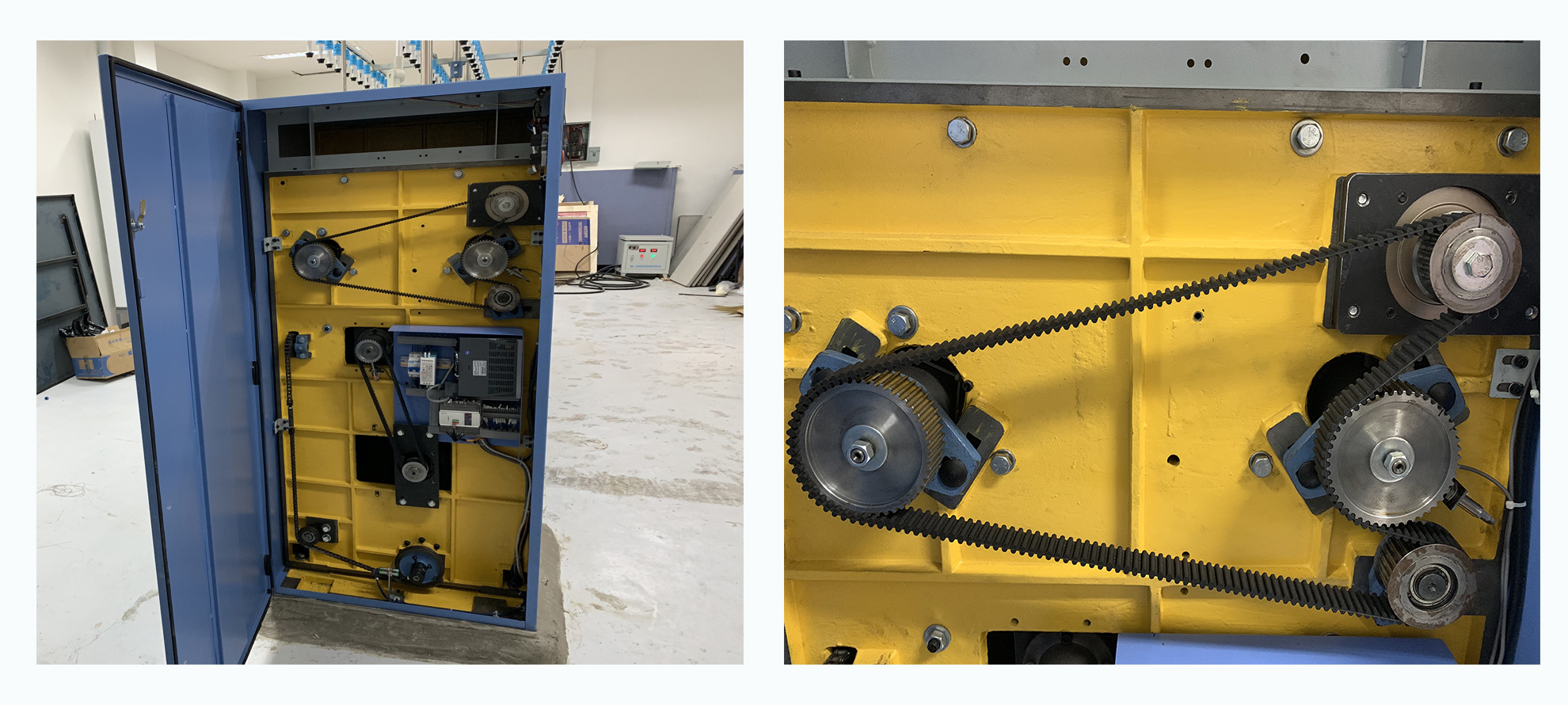

Electronic Drive box |
With geared servomotor (spindle ring rail, ballooon control, drafting, pneumafill) |
|
Power |
15 kilowatts,3 phase voltage system, 220 - 230V, 50/60 Hz, Inverter type motor |
|
Others |
Positive ring rail and Balloon control |
|
Creel for Bobbins |
|
|
Designed with CAD program |
|
|
Ethernet Connection |
|
|
Touch screen touch panel |
|
|
1 electric panel on board of drive box |
|
|
Pneumafill box integrated ; controlled by touch screen implementatyion software for flame effect , multitwist, multicount |
|
|
Provision of 1000 spindle bobbin tubes ( compatible with existing worsted spinning machine - H = 240mm Height). |
|
|
CE certification according to 2006/42/CE regulations with provision of power cable to power source. |
|
|
Equipment Cooling : Exhaust and programming system |
|
|
Two ( 2 ) units 5 tons Air Conditioning unit |
|
|
One ( 1 ) Computer laptop for Programming ( windows 10, w/ atleast Intel Core i5 processor) |

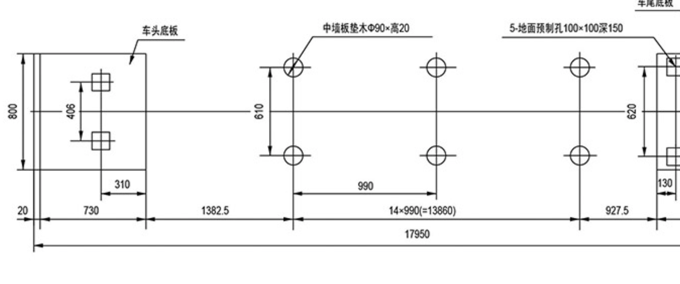

Drawing
