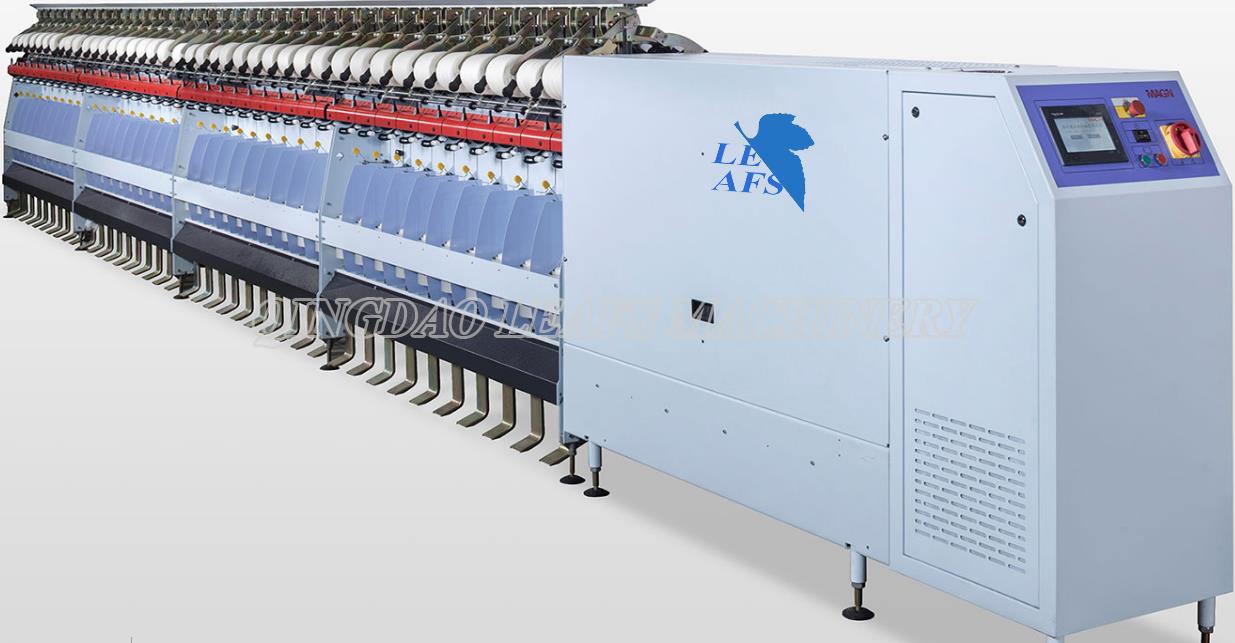

LS 688 Smart twister
Main Features
a. Servo drive system uses 3 independent motors to drive respectively. Servo drive can realize: Take-up speed is up to 120m/min; Setting parameters easily; Electronically controlled anti-patterning; Electronically breathing for package dyeing; Oil-free and maintenance-free; Flexible shape of package.
B. E-save spindles sequence: By optimizing balloon shape, e-save spindle can save up to 40% balloon energy consumption. Minimized vibration noise thanks to all rotary parts of spindle are assembled on damped structure.
c. All parts which contact with yarn directly are specially surface-treated to protect yarn effectively. Yarn path can be cleaned with pneumatic threading system.
B. d. user-friendly interface, can display spindle speed, TPM, take-up speed, set time and set length, which can also set crossing angle, traverse length, breathing function and yarn productivity.

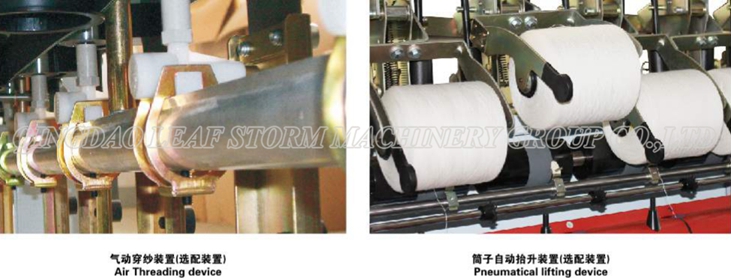

e. Alternative: Pneumatic threading device, Package lifting device and Tail device etc
Option Device
Specifications
|
Spindle model |
LS-07 |
LS-08 |
LS-09 |
LS-10 |
LS-11 |
|
TPM Range(T/M) |
80-2800 |
80-2800 |
80-2800 |
80-2800 |
80-2800 |
|
Highest Spindle speed(r/min) |
11000rpm max |
12500rpm max |
13500rpm max |
14500rpm max |
15000rpm max |
|
Max Joint TPM(/min) |
22000 |
25000 |
27000 |
29000 |
3000 |
|
Count Range(with balloon limit) |
Ne 4/2-100/2 |
Ne 8/2-100/2 |
Ne 20/2-200/2 |
Ne 30/2-200/2 |
Specially for 100% cotton & silk |
|
Count Range(without balloon limit) |
Ne 8/2-100/2 |
Ne 16/2-100/2 |
Ne 20/2-200/2 |
Ne 30/2-200/2 |
Ne 60/2-200/2 |
|
Max Feed Package |
180mm Cylindrical |
155mm Cylindrical |
135mm Cylindrical |
120mm Cylindrical |
94mm Cylindrical |
|
Max Twisted Package |
5°57 conical 280mm |
5°57 conical 280mm |
5°57 conical 280mm |
5°57 conical 280mm |
5°57 conical 280mm |
