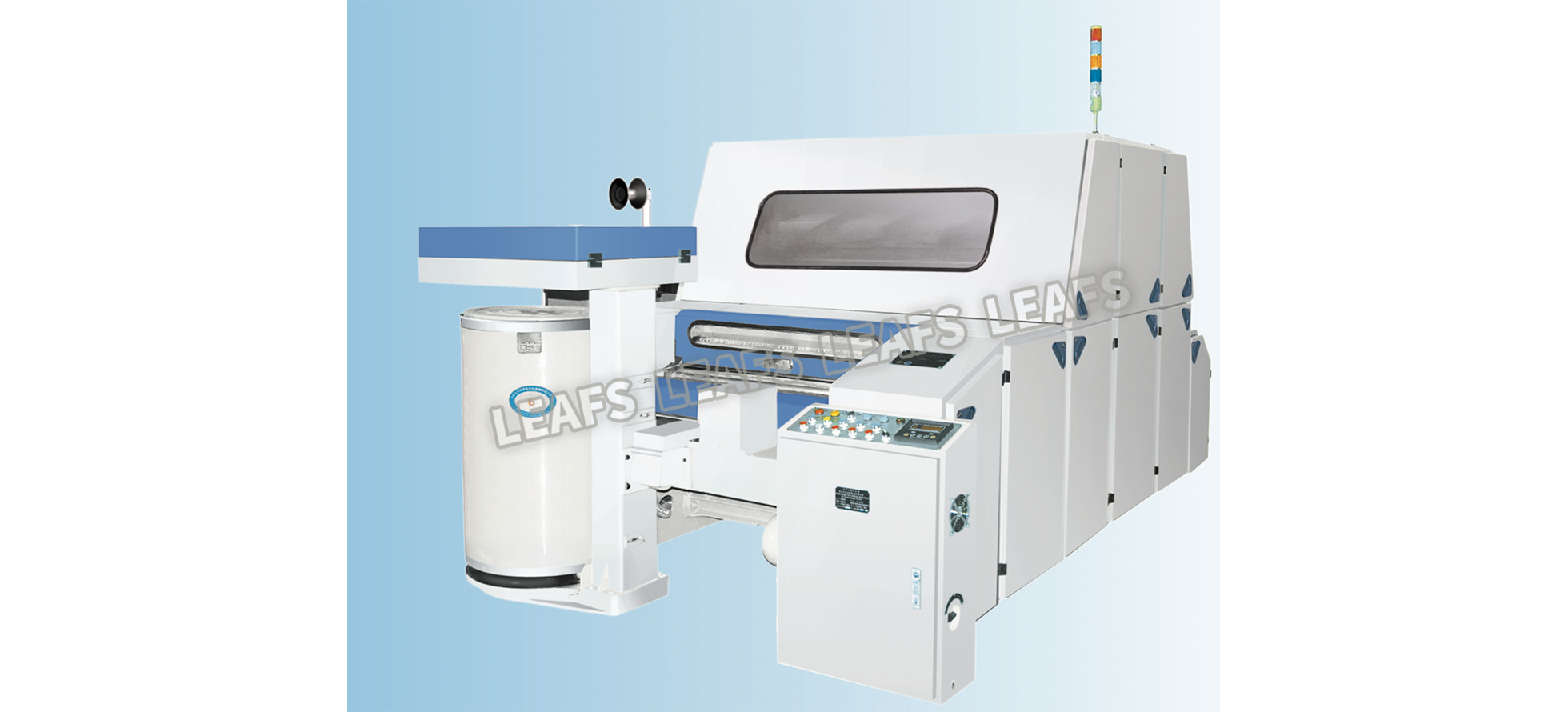

FA204C Carding machine
Tandem stationery flat,web cleaner, Al-alloy sheet can be configurated and fit in different group according to material,featured by flexible mantling and dismantling, good trash excluding efficiency.
Specifications
|
This machine is used: |
processing cotton and ma-made fiber or blends in Iength22-76mm |
|
Deliver speed: |
Max. 140m/min |
|
Output: |
up to 45kg/h(max) |
|
Sliver count: |
3.5~6.5g |
|
Layer weight: |
400-800g/m |
|
Working width: |
1000mm |
|
Total draft: |
68.7-152.8 |
|
Taker-in diameter: |
250mm |
|
Taker-in speed: |
823, 983, 1039rpm |
|
Doffer diameter: |
706mm |
|
Cylinder diameter: |
1289mm |
|
Cylinder speed: |
323, 360,403r/min |
|
No. Of revoling flats(working/total): |
39/104 |
|
Auxiliary carding parts: |
taker-in carding segment,front 3 rear 2 stationer flats or front 4 rear 2 stationer flats with 1 web purifier,or front 3 rear 2 stationary flats |
|
Can size:z |
600*900mm,600*1100mm |
|
Total install power: |
5.72kw |
|
The main motor: |
3.3kw |
|
Doffer motor: |
1.5kw |
|
Motorforcleaning roller: |
0.37kw |
|
Motor for feeding roller: |
0.55kw |
|
Floor area(LxW): |
3732*2033(mm) |
|
Net weight: |
approx.5500kg |
Optional:
Blowing-carding-drawing unit:without cotton waste.suitable fro high speed and high production
Continuous suction:ir exhaust amount 2800-3500 m3/h for continuous suction.
FA204C Lab Integrated Blow-card Machine
Specifications
Input: cotton @ 28-mm ; Sliver hank - 0.12Ne to 0.15 Ne
Capacity: 40kg/h operation
Delivery speed: 25m/min
Beater: 10" diameter, 60ppsi
Cylinder: 20" diameter, 900ppsi
Aerodynamic chute-feed for carding zone
Sliver can auto-stop feature, ergonomic stop-resume switches
Suction for extraction of short fibers and dusts
Machine auto-off (in the event opening of safety doors)
40 pcs HDPE Seamless sliver cans (24" x 45" x 2.5")
Includes 1-unit wastes suction device to be installed/ filter box
Includes 1-unit Nottebook PC with Program for monitoring
Processor: i7
RAM: 16GB RAMDDR4 ; HDD 512 GBSSD
Display: 15.6"
Operating System: Windows 10 64 bit and MS Office (Wireless mouse)
Power Supply: 3 Phase; 220-Volts; 60Hz
