Dref Yarn Friction Spinning machine

Category：

Dref Friction Spinning

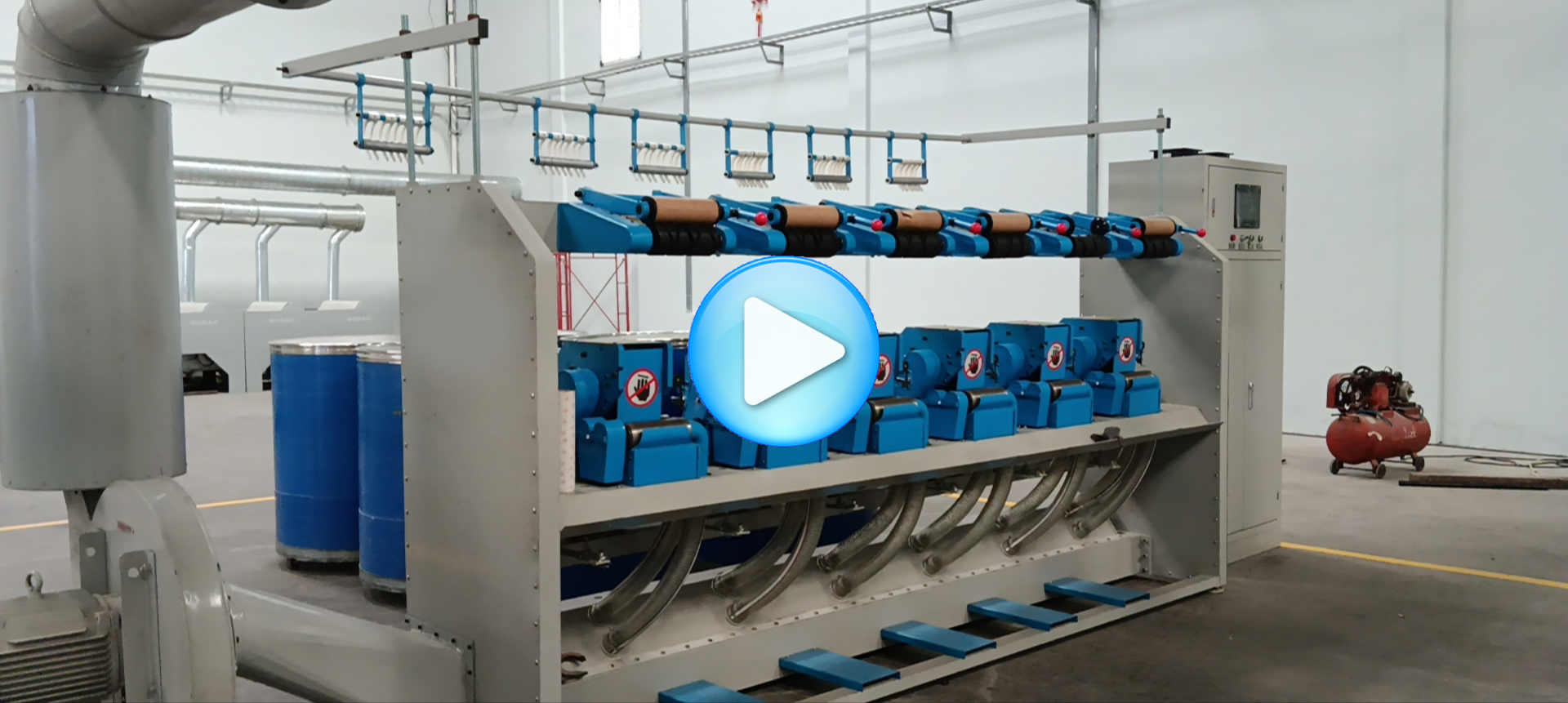

DREF Spinning Frame is one type of friction spinning machine, normally it is used to spin sliver to coarse yarn through drafting and free-end spinning. It’s the ideal system for teaching, researching, production, etc.

Keyword:Yarn Spinning machine line

INQUIRE

DETAILS

Friction spinning or DREF spinning is a textile technology that is suitable for spinning coarse counts of yarns and technical core-wrapped yarns. DREF yarns are bulky with low tensile strength, making them suitable for blankets and mop yarns. They can be spun from asbestos, carbon fibers and are capable of being made into filters for water systems.

Specifications

Specification	Number
machine name	Friction spinning machine
Spindle	6 head
motor control	Touch screen and PLC
suitable fiber	Cotton, man-made fiber, aramid fiber, hemp and recycled cotton etc
dust cage diameter	Φ83mm , length 220mm
Combing roller diameter	Φ178mm
Bobbin size	78mmX235mm (Cylindrical type )
Full bobbin weight	Max 9 kg
Spinning speed	Max 250rpm
Yarn count	0-5 S
Draft type	Three rollers
Max. speed of carding	4,000rpm
Draft control	Automatic
Sliver feeding	4~16g/m, 1~6pcs
Power supply	AC380V, 3phase, 50Hz,18KW
Dimensions	6,1008502,200mm
Net weight	3800kg

This machine is applicable below conditions

Applicable fiber length:10-120mm

Applicable fiber density:1.2-15detex

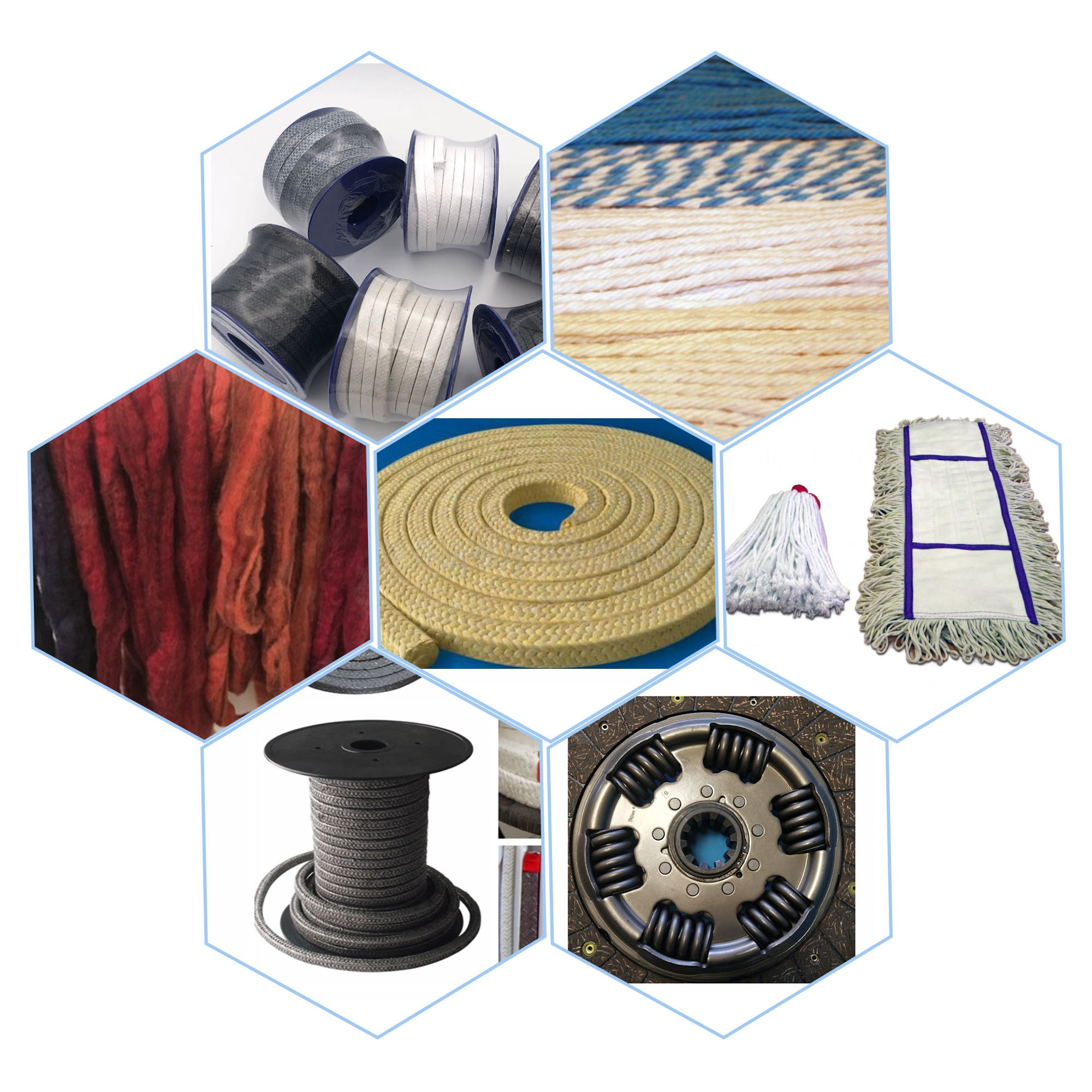

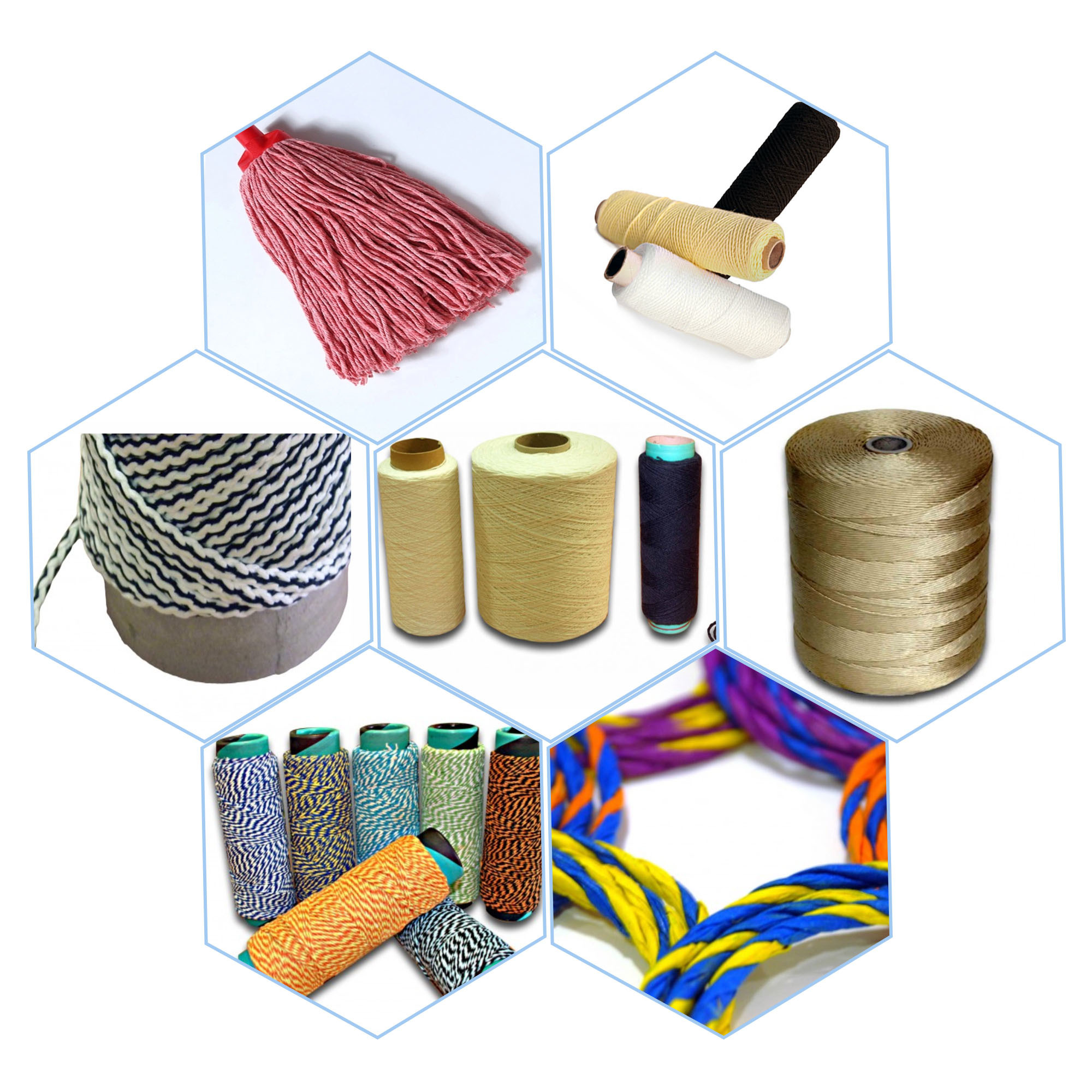

Applicable fiber types

1.Polypropylene filter yarn in Wire-wound filter

2.Degreasing cotton composite yarn in Wire-wound filter

3.Glass fiber composite yarn in Friction material industry

4.Acrylic peroxidation composite yarn in Friction material filed & sealing field

5.Aramid or poly-sulfonamide composite yarn in Friction material filed & sealing field & flame retardant material of high strength and heat resistance filed

6.Mop Yarn or ground-wiping cloth yarn from Scrap of cotton mill, processed animal hair, secondary fiber from waste spinning

7.Steel cable yarn for filter filed

8.Blankets yarn for home textiles, military uses, as well as for hotels, hospitals, camping plaids, and many others

9.Secondary carpet backing for tufting carpets, filler yarns for carpet wefts, and special carpets such as Berber carpets, hand-woven and hand-knotted carpets

10.Woven fabrics for outerwear and leisure-wear

11.Canvas for the military and civil sectors

12.Filter yarns for liquid filtration

13.Asbestos substitutes such as heavy protective clothing and gloves, gaskets, packing, flame retardant fabrics, etc.

14Automotive applications such as brake linings and clutch pads

15.High-tenacity core yarn for ropes, transport and conveyor belts

16.Decorative and upholstery fabrics

17.Animal hair such as goat or camel for the production of tents

Mix of the above fibers.
