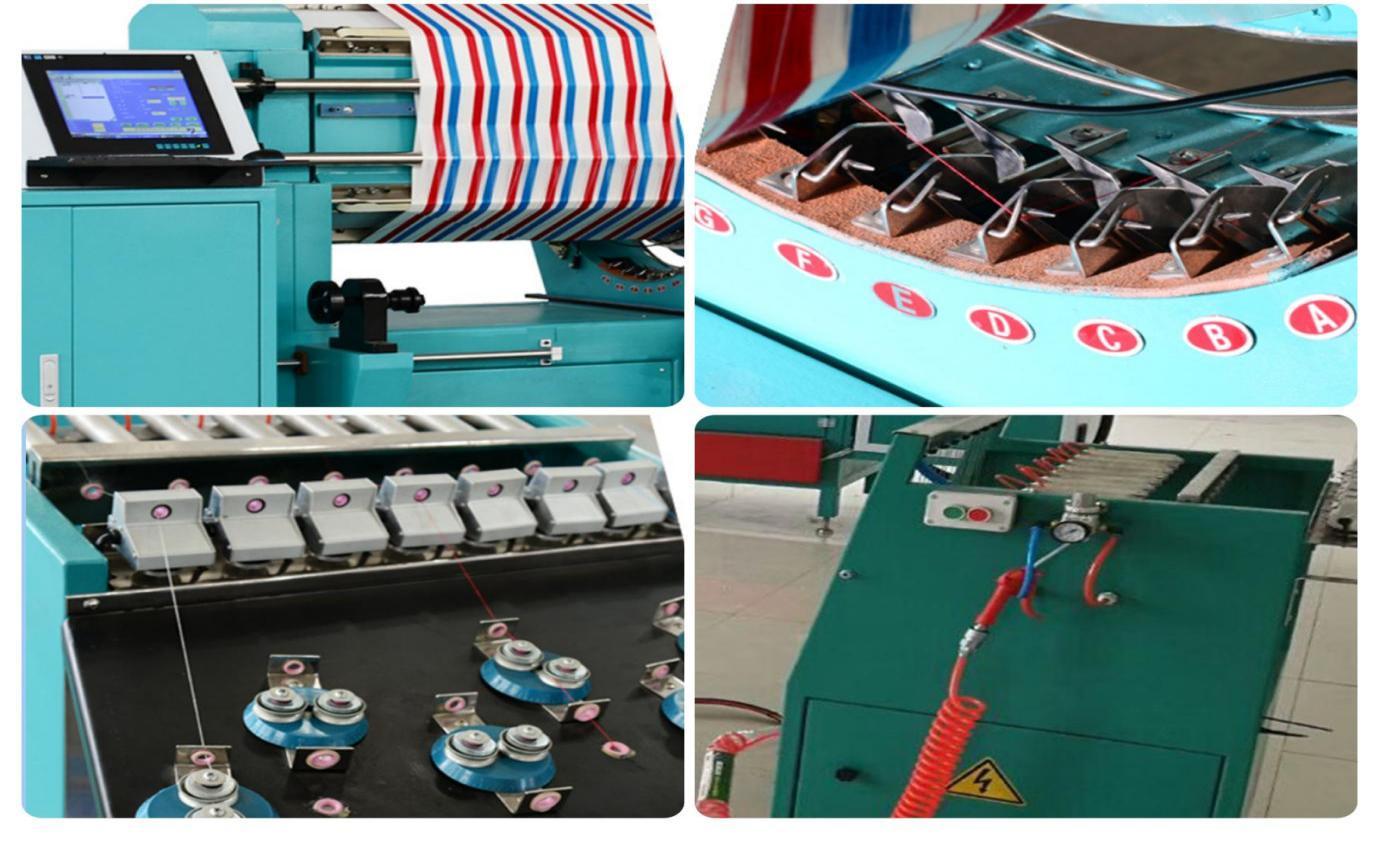

LSW328 Sample automatic warping machine
Category：
Lab warping machine
Keyword:Yarn Spinning machine line
DETAILS
The sample warping Machine supply warping service for product samples s and weaving samples and small batch fabrics in weaving mill,universities and research .
Features
1.Touch screen display and PLC control and software for arranging the laying of yarn;
2.Special design for sample weaving in lab or research and development institute;
3.Accuracy of warp displacement reaches 0.01mm;
4.SMC rotating cylinder used for color selection, accurate and reliable to change yarn;
5.AC frequency converter to control yarn winding, online detect winding speed;
6.Frequency converter control beaming mechanism, ensure constant winding speed while beaming;
7.Pneumatic pressuring and damping structure to acquire even yarn tension;
8.Bobbin creel adopts air pressure tension-relaxation-preventing structure; avoid tension relaxation while changing yarn;
9.Automatic warp break stop and yarn double winding stop;
10.Foot pedal for unwinding;
11.With inching and stop button for the safety of operator;
Specifications
|
Warping width |
200~700mm |
|
Warping speed |
0~300m/min (frequency control) |
|
Warping length |
1.8~18m |
|
Applicable yarn density |
5~500tex |
|
Number of bobbins |
8pcs (automatically-changeable) |
|
Yarn arrangement |
Servo motor control with accuracy of 0.01mm reachable |
|
Applicable warp beam diameter |
¢60mm |
|
Applicable warp beam length |
300~700mm |
|
Air pressure required |
0.4~0.8Mpa |
|
Air consumption |
Max. 200L/h |
|
Power supply |
AC220V Or 380V 50Hz, three-phase |
|
Dimensions |
4650×1100×1400mm(L×W×H) |
|
Weight |
Approx.1350kg |
