LSS102 Lab carding machine
Category：
Carding machine
Keyword:Yarn Spinning machine line
DETAILS
Lab Carding machine is to use cover plate type or roller type carding machine, with the aid of needle surface movement, to comb the small cotton bundle into a single fiber state, further remove impurities and non-spinnable short fiber, so that the fiber parallel straight, finally made into a cotton strip disc into a cylinder.
Specification
|
Control mode |
Touch screen & PLC |
|
Applicable fiber length |
22~50mm |
|
Working width |
480mm |
|
Feed quantity |
4~6kg/h |
|
Feed roller diameter |
Φ250mm |
|
Feed roller speed |
750rpm |
|
Cylinder diameter |
Φ446mm |
|
Cylinder speed |
750rpm |
|
Cover plate qty (Working/Total) |
20/41 |
|
Doffer diameter |
Φ258mm |
|
Doffer speed |
13rpm |
|
Can diameter |
Φ250mm |
Features

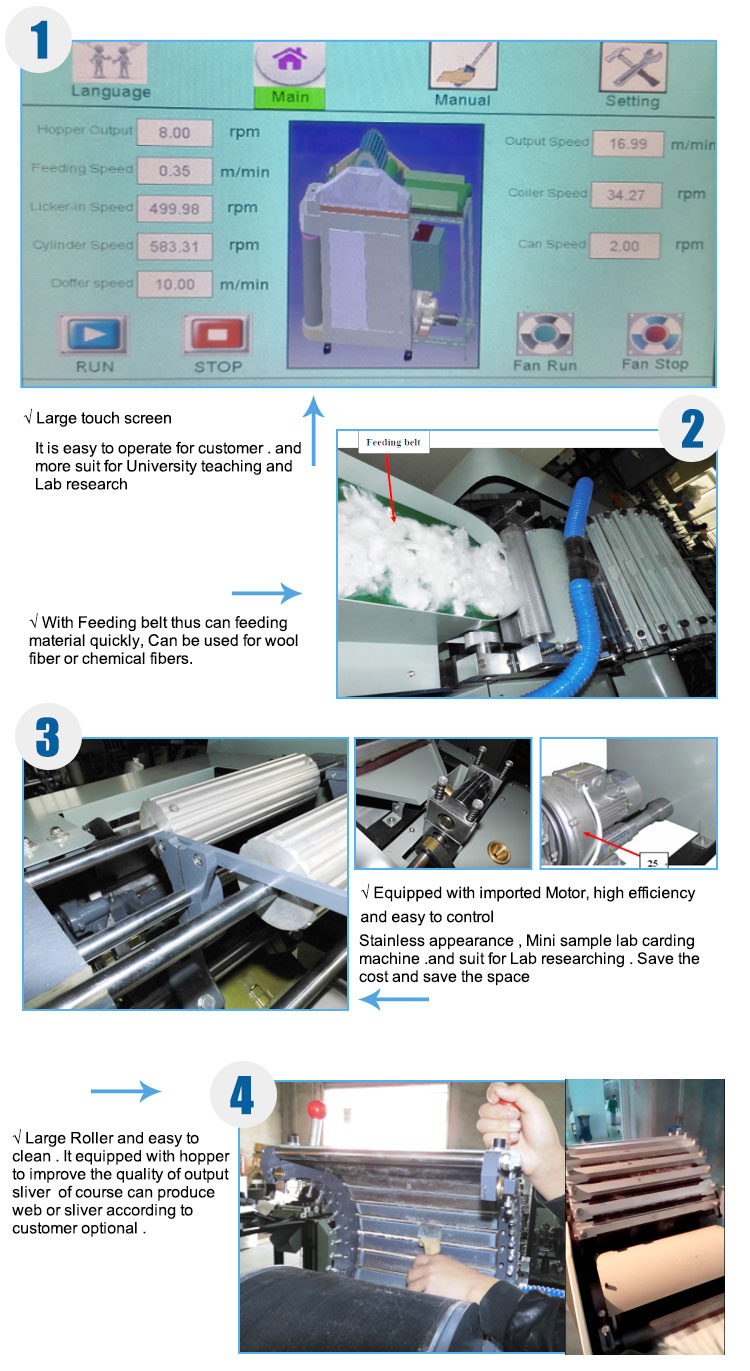

1.Delta brand PLC + touch screen control, easy to learn and operate;
2.High mechanical-electrical integration degree, stable and reliable;
3.Use touch screen as man-machine interface, input technical parameters and show machine running state by touch screen;
4.Use standard can coiler to output cotton sliver;
5.Integrated electrical control, easy to maintain;
6.It consists of feeding box, machine, and coiler, of which feeding box makes the feeding evenness;
Details
