LS008 Yarn Doubling and Twisting Machine

Category：

Twisting machine

The machine is suitable for all kinds of spun yarn twisting and doubling on one machine.It is convenient for proofing .The twist of each spindle yarn can be adjusted independently,the yarn breaking can stop automatically.The doubling function can wind up 2 or 3 bobbins into one bobbin.It doubles the twisting speed than the traditional device. It is part of the mini spinning system.(opener, drawing frame,roving, ring, winding machine.)It's widely used in spinning factories, dyeing factories, school laboratories,university, researching center, etc.

Keyword:Yarn Spinning machine line

INQUIRE

DETAILS

It is part of the mini spinning system.(opener, drawing frame,roving, ring, winding machine.)It's widely used in spinning factories, dyeing factories, school laboratories,university, researching center, etc.

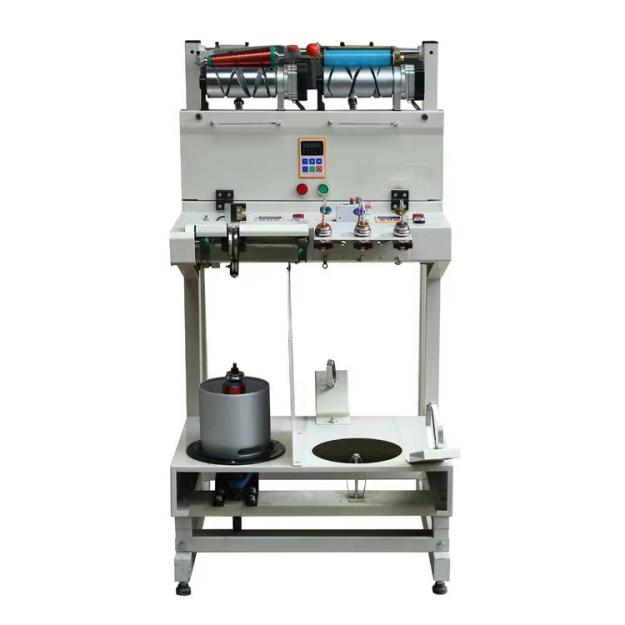

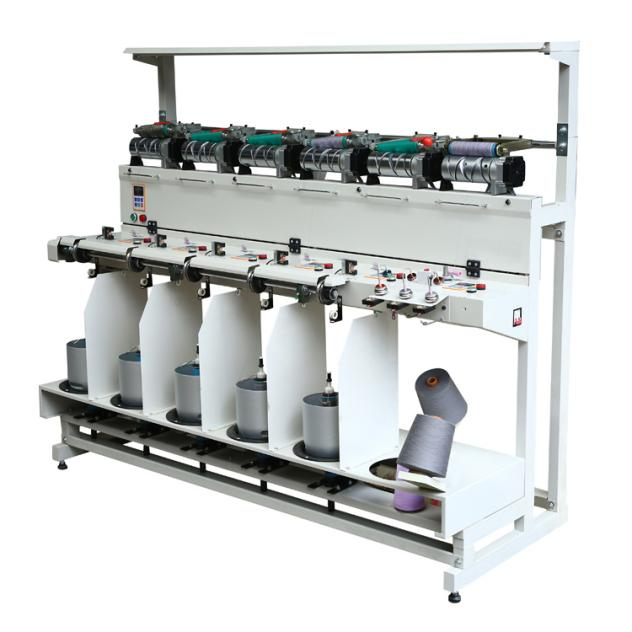

6 spindles (5 twisting and 1 doubling)	2 spindles(1 twisting and 1 doubling)

Features

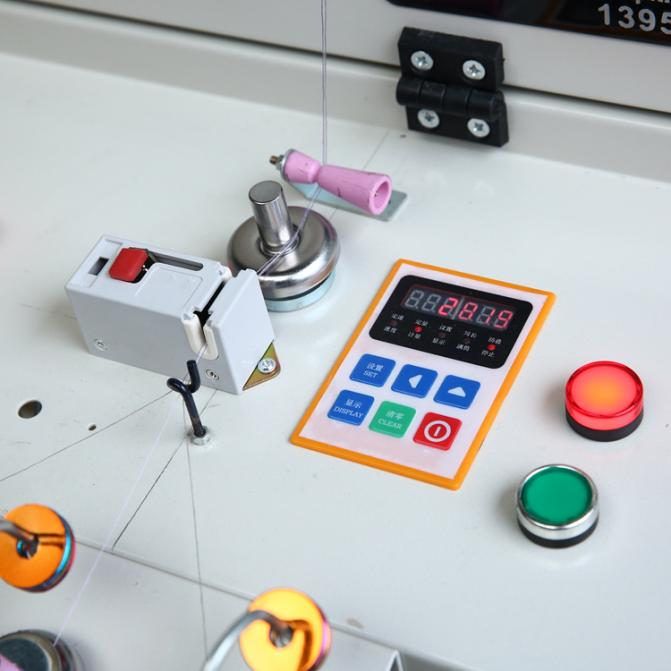

1.Each spindle is independently controlled by computer numerical control, with simple structure and convenient operation.

2. The twist of 10-800 twists is independently adjusted by numerical control, which can save employees' energy.

3. Automatic stop function of machine yarn breakage alarm greatly saves yarn material and reduces the strength of staff watching machine.

4. Yarn doubling and twisting by independent motor control, two functions do not interfere with each other, it can realize one machine dual use.

5.Electrical wobble frequency anti--patterning ,controlled by converter.

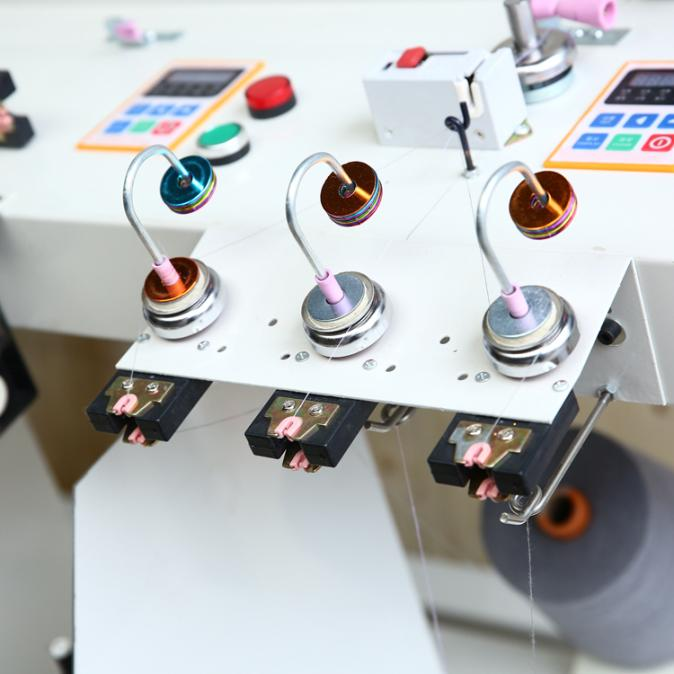

6.Every spindle configuration of rotating tension slices.

7.With electronic yarn sensor, the spindle will stop when yarn break.

8.Every spindles is equipped with infrared and hall sensor ,automatic length fixing,max:999999m.

9.Speed regulation device,variable frequency speed control and slow start device.

Specification

Model	LS008DT
Number of spindles	2 spindles/set ,4 spindles/set,6 spindles/set (1 ,3,5for twisting ,1 for doubling)
Mechanical speed	25-1000m/min (depending on yarn quality and count)
Package bobbin	0°, 3°30’, 4°20’, 5°57’, 9°15′ ，
Package diameter	Up toφ 250 mm
Package weight	Up to 2kg

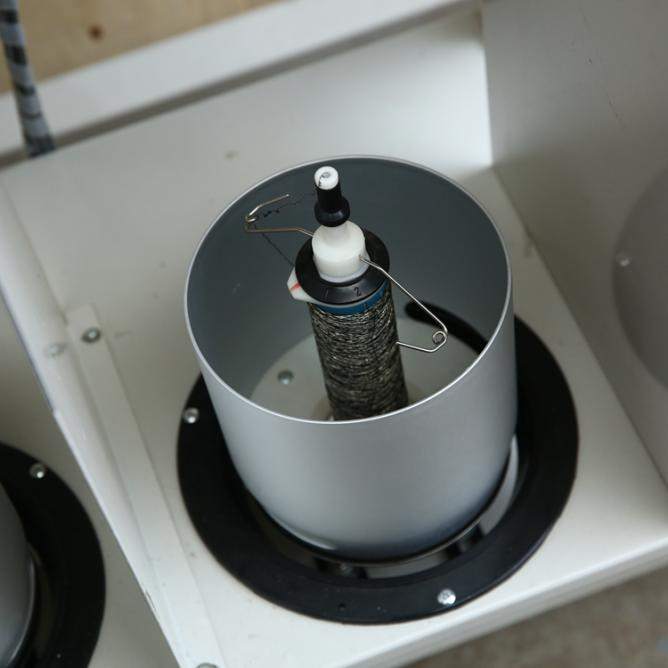

Twisting cup diameter specifications	φ146mm,φ166,φ196mm

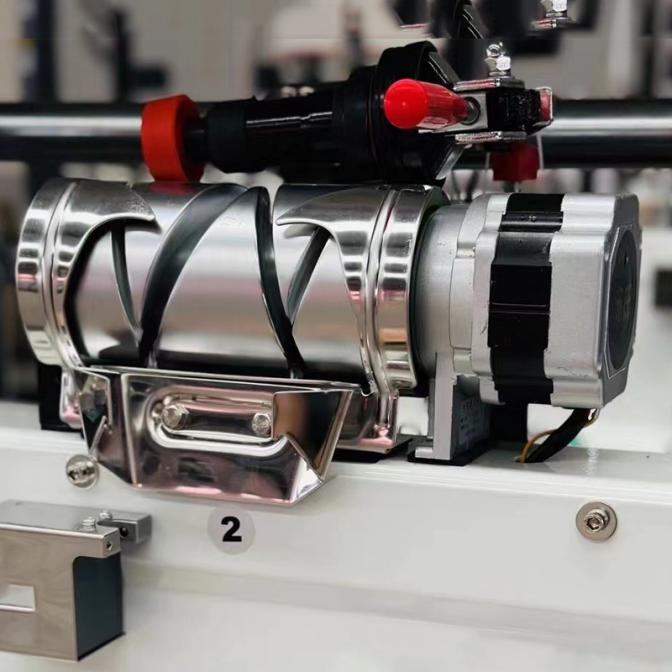

Effective length of drum traverse length	147mm
Yarns / count	Cotton. flax, wool,cannetille，steel fiber， Ne5-Ne60
Power consumption	90W/spindle for twisting,180w/spindle for twisting
Auto stop while yarn break	With electronic yarn sensor, the spindle will stop when yarn break
Automatic length fixing	Automatic length fixing,max:999999m
Slow start	For smooth start and better winding quality,supporting individual slow start for each spindle
Power supply	220V , 50/60HZ, or customized

Optional

1.With PLC or not.

2.With Electronic yarn cleaner or not.
